SN Patch Cord for IOT, cloud services, 4K video and 5G services
Introduction of SN Patch Cord
With the growth of IOT, cloud services, 4K video and 5G services,the processing capacity of global data centers is expected to grow bymore than 35% CAGR per year. At the same time, the need to reducelatency requires data centers to be as close to users as possible,especially in delay sensitive applications such as unmanned driving.Starting from reducing size and reducing power consumption, datacenters in the future need to be more compact and moreenergy-saving, SN connector is the next generation of higher densityconnector recently launched by Senko. SN and CS are both compactdual core connectors. Compared with high-density LC connector, thedensity of SN is increased by 40%. In order to facilitate the installationof pull tab with different length. CS supports four fiber application of QSFP, the installation density of LC is doubled. The pitch of SN is only3.1 mm, which is more compact and supports 8-fiber application.
Features of SN Patch Cord
1) Compared with LC dual core connector, the size is greatly reduced.
2) Designed for OSFP-DD applications.Suitable for 1.25mm plug.
3) The OSFP-DD module can accommodate four SN connectors.
Technical Data of SN Patch Cord
| Mechnical Data | Value |
| Connector Type | SN |
| Polarity Type | A to B, A to A |
| Cable Diameter | 1.6mm round |
| Cable Color | Yellow, Aqua, Violet, Lime green |
| Optical Data | Value |
| Fiber Mode | OS1/OS2 - 9/125 bend insensitive or OM1/2/3/4/5 |
| Fully Compliant | 850nm (Multimode), 1310nm/1550nm (Singlemode) |
|
IL(Low Loss) |
Singlemode≤0.15dB, Multimode≤0.15dB |
| IL(Standard Loss) | Singlemode≤0.3dB, Multimode≤0.3dB |
| Return Loss |
Singlemode UPC≥50dB APC≥60dB Muiltmode UPC≥25dB |
Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
Testing Lab
| No | Device name | No | Device name |
| 1 | Optical time domain reflectometer (OTDR) | 8 | GNZV Cable Torsion Testing Machine |
| 2 | Fiber Polarization Mode Dispersion | 9 | GQNV Cable Flexing Testing Machine |
| 3 | Fiber Dispersion ,Strain Tester | 10 | GJRV Cable Winding Testing Machine |
| 4 | High Low Temperature Test Chamber | 11 | GZDV Cable Vibration Testing Machine |
| 5 | Cable Impact Testing Machine | 12 | Cable Water Penetration Test |
| 6 | Cable Squash Tensile Testing Machine | 13 | Fusion Splicer |
| 7 | GWQV Cable Bending Tester | 14 | Cable Water Penetration Test Rig |
Our advantages of SN Patch Cord
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) MOQ just 1Km
4) ISO, UL , ROSH,REACH...certifications
5) Can be customized production of fiber optic cable

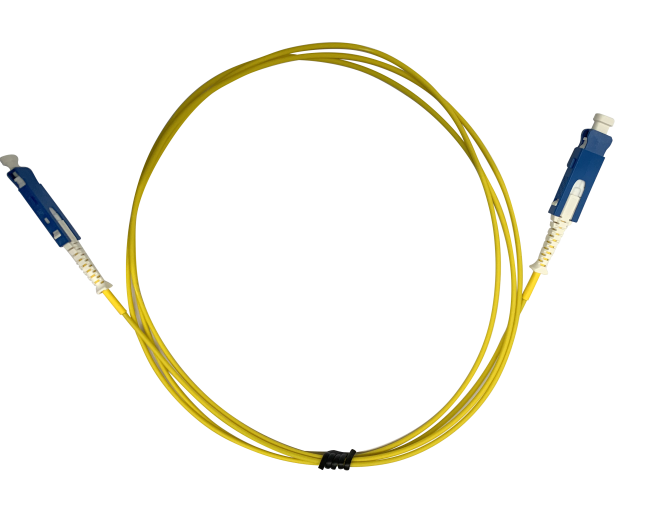

Pictures of SN Patch Cord
