Breakout Lc Fiber Pigtail , Ceramic Ferrule 12 Fiber Pigtail Assembly
Price:
Negotiation
MOQ:
10pcs
Delivery Time:
6 working day
Brand:
XDK
Product Description

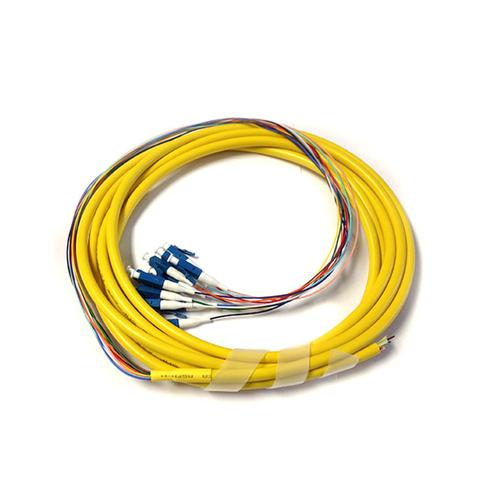

12 fiber LC Fiber optic pigtail singlemode/ multimode Fiber Breakout Pigtail Ceramic Ferrule
Description
The 12 fiber pigtail comes pre-terminated with LC, LC/APC, SC, SC/APC, ST, and FC/APC connectors. Core and cladding combinations range from 62.5/125µm, 50/125µm, and 9/125µm for OM1, OM2/OM3/OM4, and OS2 fiber specifications. 12 Fiber Optic pigtails come in lengths of 1, 2, or 3 meters with additional longer with available upon special request.
Specification
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652/G655/G657 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
Features
- Ceramic Ferrule;
- High return loss;
- Low insertion loss;
- Good repeatability and and exchangeability
- Excellent Polished and 100% tested;
- Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
Applications
- Termination of optical networks via fusion or mechanical splicing
- Testing of optical devices
- Cable acceptance testing
