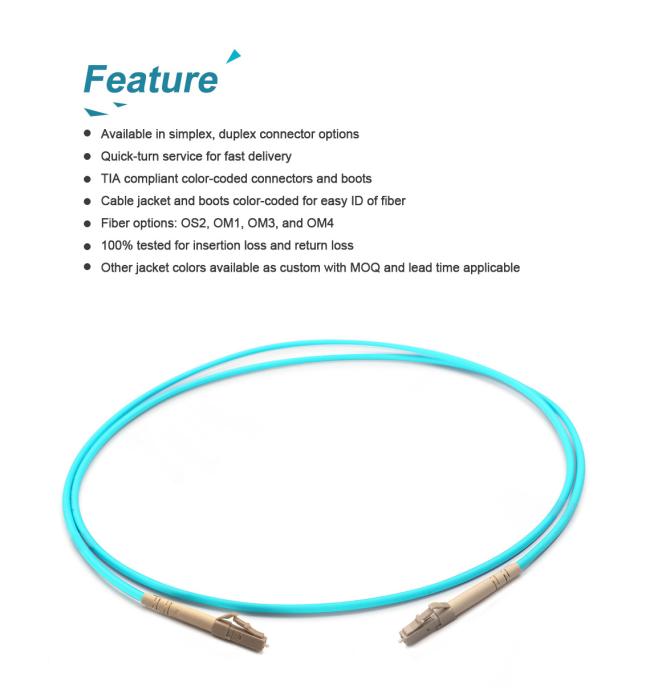

Aqua LSZH / PVC Jacket LC Multimode OM3 Simplex Fiber Optic Data Cable
LC Muiltmode Patch Cord Optical Fiber Aqua LSZH/PVC OM3 Simplex Fiber Optic Data Cable

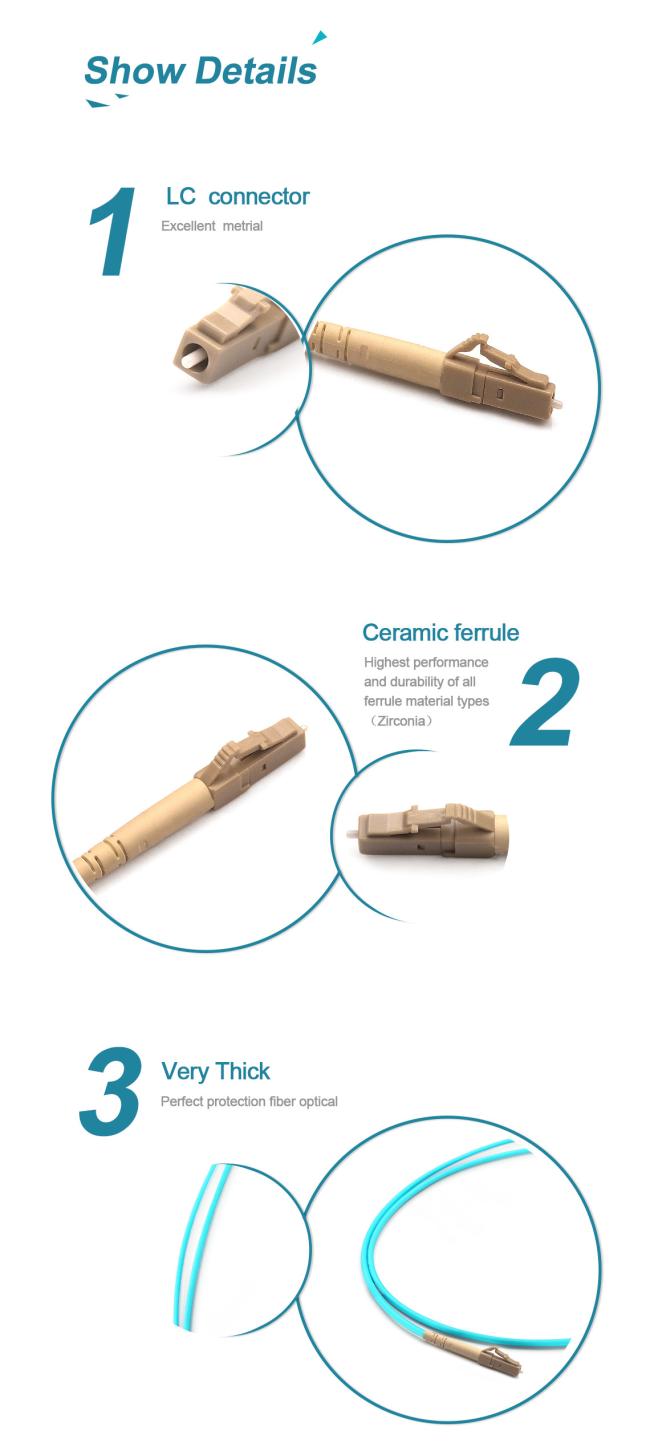

Notes: all of our products are under high quality control and 100% factory tested assemblies. The most popular used ones are ST, SC,FC and LC style connectors, which are differently from characteristics, applications and performances. All the connectors have three majors components: the ferrule, the connector body and the coupling mechansim. Among those, the ferruleis used for protecting and aligning the stripped fiber end. The connector body holds the ferrule and attaches to the jacket and strengthens fiber cable.The couping mechanism is a part of the connector body that keeps the connector in place when connected to other devices.
Specifications:
| Connector Type | LC/UPC to LC/UPC | Fiber Count | Simplex |
| Fiber Mode | OM3 50/125um | OFL Bandwidth | 1500/500 MHz*km |
| (850/1300nm) | |||
| Insertion Loss | ≤0.3dB | Return Loss | ≥35dB |
| Attenuation at 850/1300nm | 3.5/1.5 dB/km | Ferrule Materials | Ceramic |
| (Typical) | |||

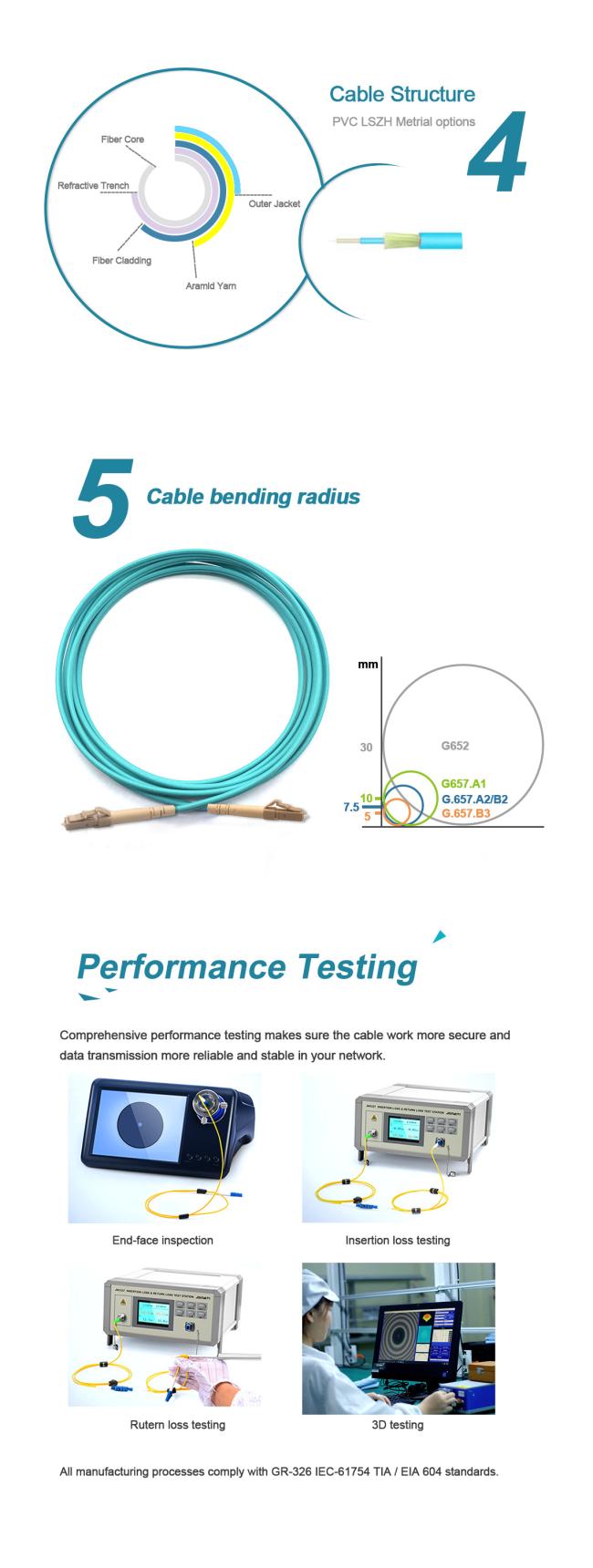

| Cable Diameter | 2.0/ 3.0mm | Strength Member | Aramid yarn |
| Optical Source | VCSEL | Minimum Bend Radius | 20D/10D |
| (Short term/Long term) | |||
| Cable Jacket | LSZH or PVC | Cable Colour | Aqua |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
Applications
1. Local Area Network (LAN)
2. Data communication network
3. Telecommunication optical transmission network
4. Optical access network(OAN)
5. Active device termination
6. Fiber optics data transmission(FODT)
7. Test Equipment
8. CATV
Our two manufacturing in China and Vietnam with capacity over 60000sqm production based, headquatered in Huizhou with branches in Hong Kong, Shenzhen, Munich and United States. We specialize in the manufacturing and create value to our partners through our fiber optic products and accessories range.
FAQ:
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B. Secondly We quote according to your requirements or our suggestions.
C. Thirdly customer confirms the samples and places deposit for formal order.
D. Fourthly We arrange the production.
