2.0mm 3.0mm G652D SC To SC SM Digital Fiber Optic Cable For Data Center
High Speed Ethernet Cable Yellow PVC G652D SC Patch Cord Fiber Optic Cable For Data Center
Fiber optic patch cord suited for equipment jumper cable, cross connects and work area connections. All patch cords are 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. FC,SC,ST, LC patch cords are available in both multimode (62.5/125um and 50/125um) and single mode cable-types, in duplex and simplex versions.
Specification:
| Connector Type | SC/UPC to SC/UPC | Fiber Count | Simplex |
| Fiber Mode | G652D 9/125um | Working Wavelength | 1260~1625nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Attenuation at 1310/1550nm | 0.36/0.22 dB/km | Ferrule Materials | Ceramic |
| (Typical) | |||
| Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
| Minimum Bend Radius | 10D | Minimum Bend Radius | 20D |
| (Long term) | (Short term) | ||
| Cable Jacket | PVC or LSZH | Cable Colour | Yellow |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
Application:
1. Optical fiber communication system
2. Optical fiber access network
3. Optical fiber data transmission
4. Optical fiber CATV
5. Local area network (LAN)
6. Test equipment

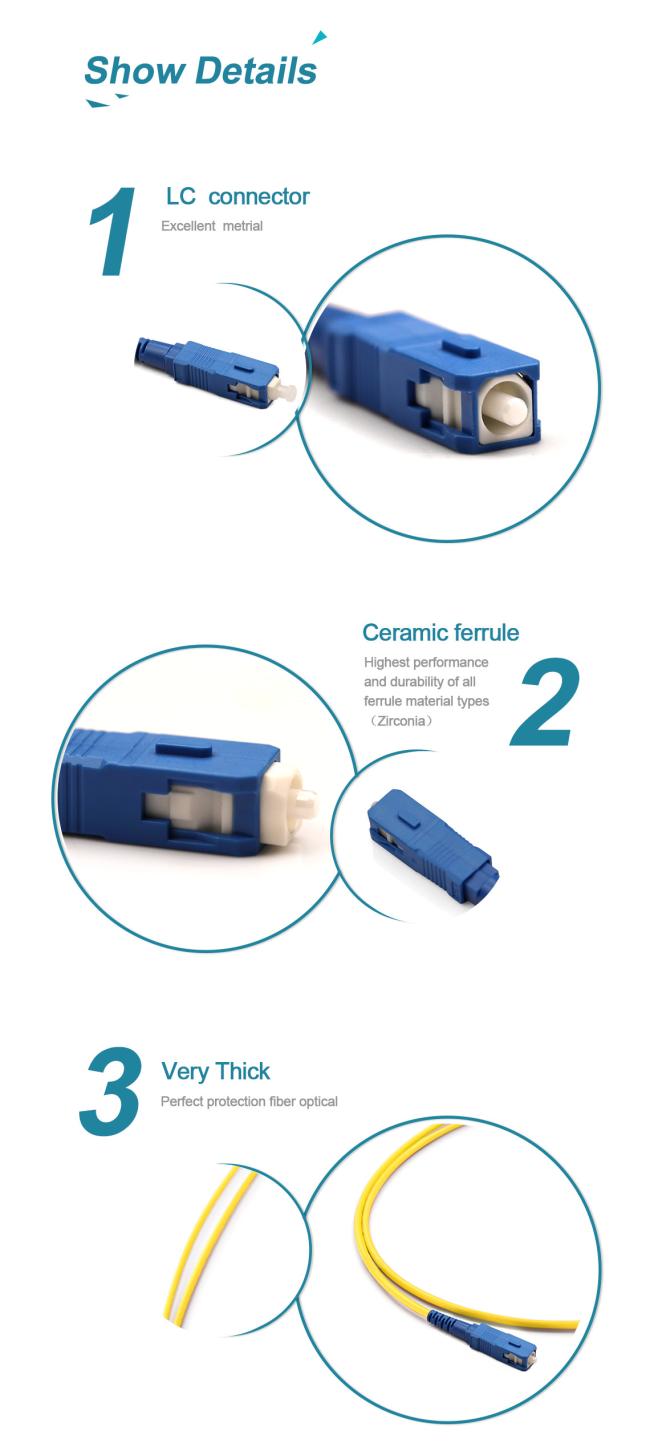

Details:
Company information:
Our two manufacturing in China and Vietnam with capacity over 60000sqm production based, headquatered in Huizhou with branches in Hong Kong, Shenzhen, Munich and United States. We specialize in the manufacturing and create value to our partners through our fiber optic products and accessories range.
FAQ:
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B. Secondly We quote according to your requirements or our suggestions.
C. Thirdly customer confirms the samples and places deposit for formal order.
D. Fourthly We arrange the production.
