Indoor Outdoor Optical Fiber Patch Cord G657A 1 Core Ftth Drop Cable Be Used For Indoor And Outdoor
Description:

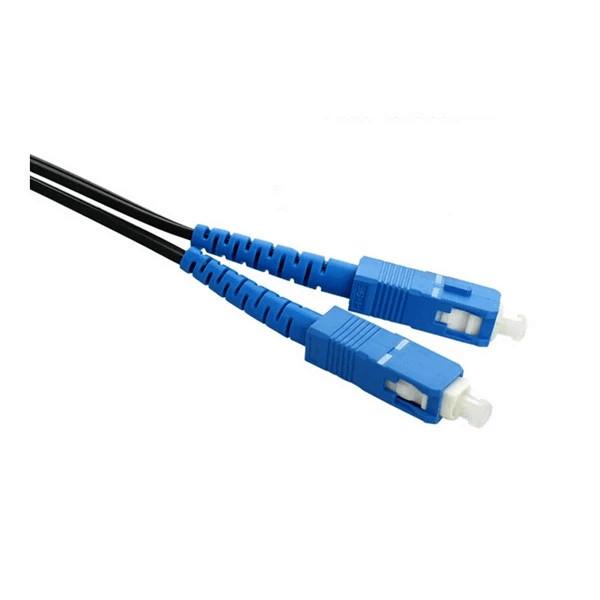

The fiber optic drop cable patch cord has two connectors in each end of the cable to make connection; pigtail cable is one cable with a connector. The connectors are with SC type, ceramic ferrule to be polished as UPC . A SM convertion patch cord is with two different connector. Our produces high performance patch cord with advanced grinding tech, imported processing facilities and scale economies effected.
Produt Details:

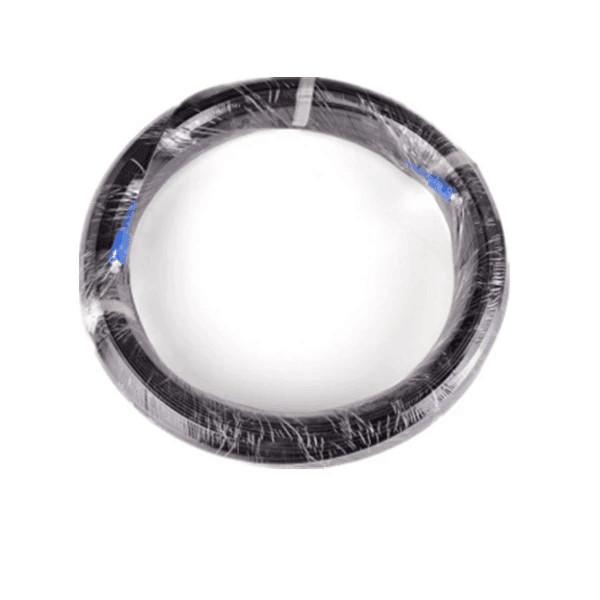

1. SC-SC Singlemode Simplex 100M Drop Cable Patch cord
2. Length:80 Meters
3. Color:Black
4. Type:Tensile metal reinforcement(3 Steel Wire Strengthen)
5. Insertion Loss: Less Than 0.3dB ,Return Loss:more than 50d
6. Cable connector : SC,LC,FC,ST,MU,MTRJ,D4,DIP
7. Cable diameter: 0.9mm / 2.0mm / 3.0mm
8. Cable mode : singlemode ,multimode .simplex ,duplex
Technical specifications:
| Patch cord Connector | PC (SM) | UPC (SM) | APC (SM) | MM |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Insertion Loss (dB) | ≤0.2 (max≤0.3) | |||
| Repeatability (dB) | ≤0.1 | |||
| Durability(1/Matings) | ≥500 | |||
| Operation Temperature (°C) | -25~+70 | |||
| Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 | |||
| Fiber | 9/125um, 50/125um,62.5/125um,ect | |||
| Cable diameter | 0.9mm 2.0mm, 3.0mm etc | |||
| Cable material | PVC, LSZH | |||
| Cores |
Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc |
|||
Application:
Be used for indoor and outdoor .
Long distance and local optical transmission network, data transmission network, image transmission networks, CATV, optical test instruments, photoelectric automatic control system
FAQ
Q1. What about the price?
Re: We usually quote within 12 hours after we confirm the technical data of your products.
Q2. What's the payment method?
Re: We accept L/C, T/T, Western Union, MoneyGram, PayPal etc.
Q3. What’s your terms of payment?
Re: 30% in advance, and 70% before shipment
Q4. How to ship the items to me?
Re: Courier(DHL,TNT,FEDEX,UPS,EMS), Airfreight, Ocean Ship are available.
Q5. How long is your delivery time?
Re: The general delivery time is 5-7 days after order is confirmed, it depends on the order quantity.
Q6. Can you send me a free sample?
Re: Yes, we are willing to send free sample, if you would like to pay the shipping costs.
Q7. Do you accept OEM or ODM?
Re: Yes, we're factory, any your customized requirements we can do our best to help you realize.
