18 Way Explosion-Proof Industrial Remote Control
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15 days
Brand:
DKLD
Product Description
18 Way Explosion-Proof Industrial Remote Control
Description:The entire set includes 1 transmitter+1 receiver+1 analog input collector, with a built-in receiver and an external extended suction cup antenna.
Once the weight exceeds the set upper limit value, it can only descend and cannot ascend. At this time, the remote control has a self program judgment internally and automatically determines the action control logic of only descending but not ascending.
If the receiver directly outputs RS485, it is directly connected to the overload limiter with RS485 interface, and there is no need to lay out the collector separately. Other voltages such as AC220V or AC380V are adapted through external transformers.

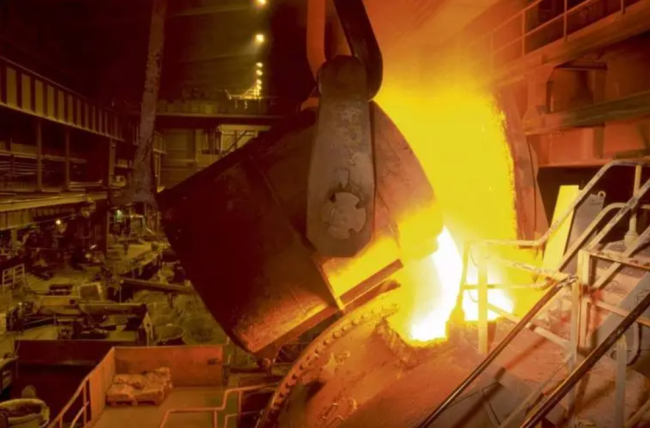

Application scenarios
Product highlight: Good anti-interference performance, with unique identification codes between each remote control transmitter and receiver, reaching hundreds of millions of sets, never repeating, and strictly avoiding mutual interference and potential interference. And the remote control has up to 50-256 frequency points, and each set in the same environment can be configured with separate frequency points. Even if the frequency points overlap, given the uniqueness of the ID identification code, there will be no impact on each other, ensuring safety and reliability.
Emitter
| Frequency MHZ |
433
|
|
Transmitter RF power mW |
Less than 10
|
|
Remote control distance M |
150/250
|
|
Power supply DC |
DC4.5V
|
| Modulation |
GFSK
|
| Frequency control |
PLL
|
| Antenna impedance Ω |
50
|
| Command response time ms |
Less than 40
|
| Working temperature ℃ |
-35℃~75℃
|
|
Protection grade
|
IP65
|
Receiver
| Frequency MHZ |
433
|
| Receiving sensitivity dBM |
-112
|
| Remote control distance M |
150/250
|
| Power supply DC |
DC12-24V
|
| Modulation |
GFSK
|
| Frequency control |
PLL
|
| Antenna impedance Ω |
50
|
| Command response time ms |
Less than 40
|
| Working temperature ℃ |
-35℃~75℃
|
| Antenna mode |
External suction cup type
|
