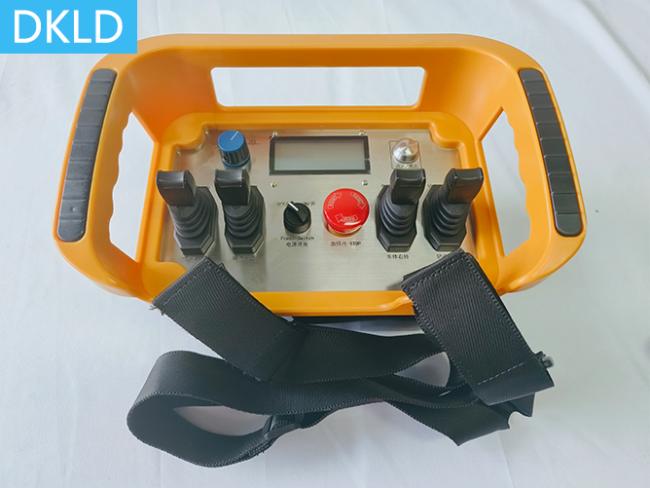

Industrial Wireless Remote Control

For Bulldozers And Excavators

Main function: The joystick is pushed back and forth, left and right to control the lifting hook up and down, the small car runs left and right, and the large car runs back and forth. The joystick is in a self reset mode, and the 5-speed speed control button is in a jog mode. The joystick is pushed back and forth, left and right to achieve 5 speed control gears, and each joystick corresponds to a 2-speed, 3-speed, 4-speed, and 5-speed relay at the receiver end. When pushed back and forth, the 2-speed, 3-speed, 4-speed, and 5-speed relays are shared, When pushing left and right, the 2-speed, 3-speed, 4-speed, and 5-speed relays are shared. The four directions of the joystick only have corresponding receiver end 1-speed relays, which means that the switch values that determine the direction are not shared. The four switch value relays that determine the direction are all separate.

Product highlight: Good anti-interference performance, with unique identification codes between each remote control transmitter and receiver, reaching hundreds of millions of sets, never repeating, and strictly avoiding mutual interference and potential interference. And the remote control has up to 50-256 frequency points, and each set in the same environment can be configured with separate frequency points. Even if the frequency points overlap, given the uniqueness of the ID identification code, there will be no impact on each other, ensuring safety and reliability.

Technical parameters: remote control distance of 100 meters, 250 meters, working temperature of -35 ° -+75 °, transmitter power supply of 3 No. 5 dry batteries of 4.5V, receiver terminal conventional working voltage of 12-24V AC/DC, other voltages of AC220V or AC380V, etc., can be adapted through external transformer voltage conversion.

Model and configuration instructions: This machine model comes standard with 1 transmitter and 1 receiver. The transmitter antenna is built-in, and the receiver is equipped with an external extended suction cup antenna (1 meter long feeder), which is attached to the outside of the distribution box and installed inside the receiver.

.

Source manufacturer
Three year warranty
