DH-Z2X5X2FSX485 The wireless remote control of offshore lifting platform l includes 1 transmitter + 1 receiver

Specification

Product Description

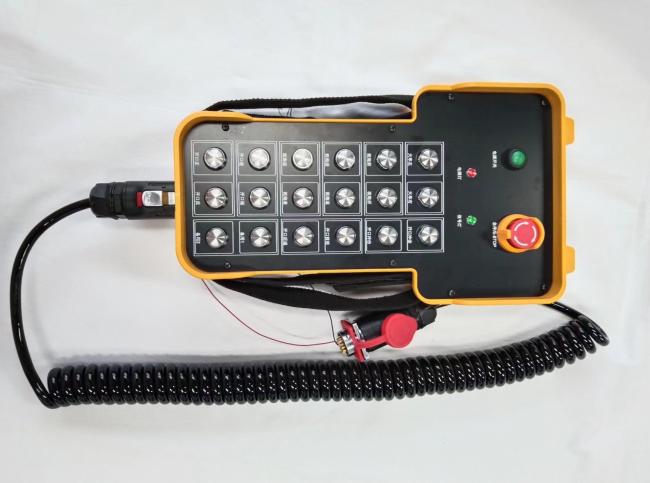

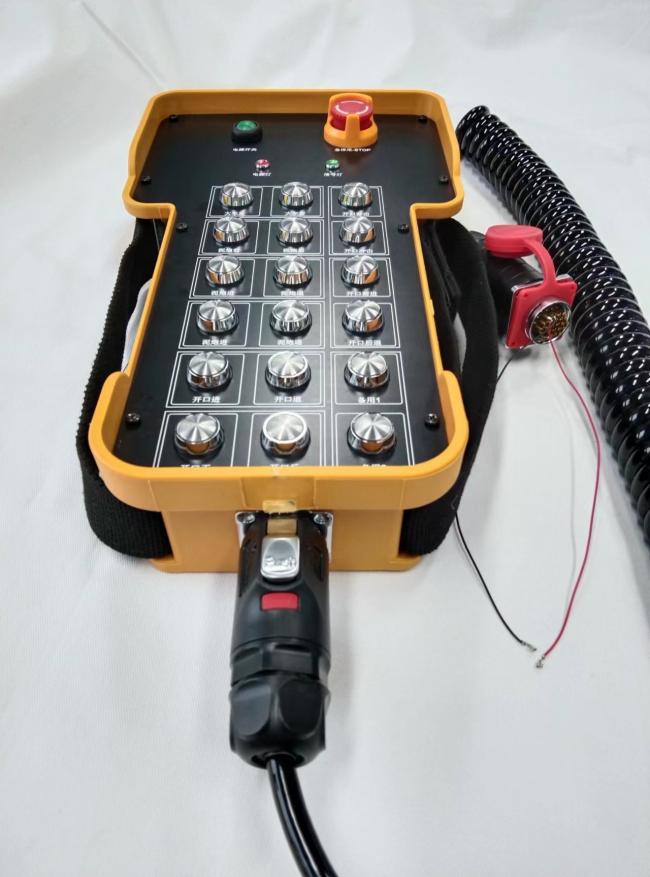

Customized buttons Industrial Wireless Remote Control

The wireless remote control of offshore lifting platform actually needs 10-20 meters. This time it is designed according to the remote control distance of 100 meters. The complete set of remote control includes 1 transmitter + 1 receiver, receiver output, except emergency stop, all other functions The implementation is designed as RS485 interface output, and the 485 interface of the controlled end PLC adopts the Moudbus protocol communication. The emergency stop corresponds to the receiver side 2 relay outputs including 1 normally open point and 1 normally closed point. Normally open points are used. The normally closed point is used as a backup.

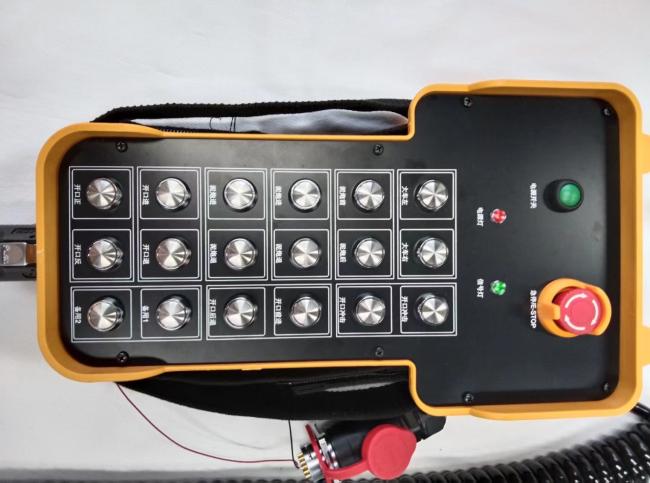

Transmitter button layout and function description

1. Layout a 5-position band rotary selector switch, the selection positions are: 0 position, synchronization, 1#, 2#, 3#, 4#, 5 positions correspond to 5 fixed-value holding mode digital signal outputs at the receiver end ；

2, a two-position rotary switch is arranged, and the function of the selection position is: start, stop, corresponding to the digital signal output of the receiver in 2 fixed-value holding modes;

3, 2 buttons, the functions are: up, down, inching operation, the two interlocking logic, corresponding to the receiver end 2 fixed value inching mode digital signal output;

4. LCD screen return display instructions: 1) Platform height, real-time change value, the specific value is collected and fed back by PLC in real time, and the value given by the PLC will be displayed. 2) The current angle of the platform and the real-time change value are subject to the value given by the PLC real-time acquisition and feedback. 3) Display the battery power percentage of the transmitter itself (the display method of the mobile phone power is the same). 4), the current operation prompt, prompts in a solid hollow way. 5) The brake status of 8 motors, the display content is "release", "brake tight", whether each motor is required to separately display its loose and brake status, to be agreed, such as "release 1", " Brake 1", "Release 2", "Brake 2", "Release 3", "Brake 3", ,, "Release 8," "Brake 8".

Product Features

1. The transmitter is sealed with silicone rubber ring, which is good waterproof.

2. Heartbeat packet detection:Once the transmitter is damaged or the signal is lost, the receiver will stop automatically.

3. The antenna is built inside to prevent it from being broken.

4. Each set remote control has unique ID identification code, even if the same frequency also does not interfere with each other.

Emergency stop button for safety

Default configuration

1. Transmitter * 1 piece

2. Receivers * 1 piece

3. The receiver comes with 1m cable connector

4. Operation and Maintenance Manual

Attentions

1. Due to transportation requirements, the product is not equipped with battery.

2. When you order, please remark the voltage, DC12V/24V or AC220V/380V(AC by external transformer).

Warranty & Service

1. Customized logo and trademark are warmly-welcomed.
2. Good after-sale services offered.
3. 1 year warranty period, spare parts supply for free.
4. 100% QC inspection before shipment.
