Product Features

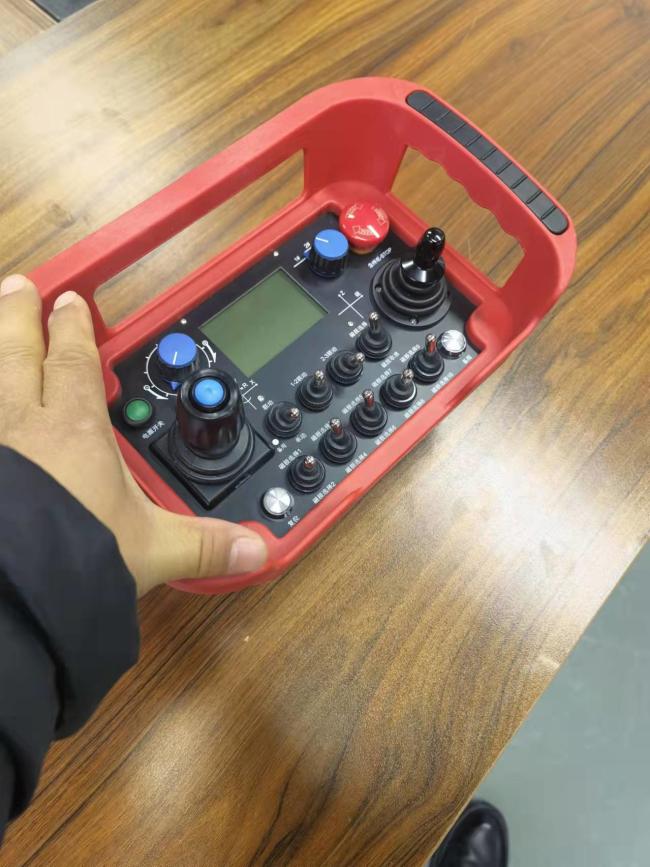

Dihuai 2 single-axis rocker track chassis remote control

2 single-axis rocker track chassis remote controllers, the complete set includes 1 transmitter + 1 receiver, the remote control distance is provided according to 100 meters, the transmitter adopts a strap-type chest operation, and the receiver adopts a built-in type, which is assembled on the car body. In the electric box, the antenna is led to the top of the distribution box for adsorption (magnet base).

Transmitter button layout and function description

1) 2 single-axis proportional joysticks, one is used to control the left-drive crawler, and the other is used to control the right-drive crawler. Each rocker is set to a certain angle perpendicular to the panel as a dead zone, which exceeds the critical angle. Firstly, it corresponds to the switch value control of No. 1 direction. If you continue to push it, it corresponds to the analog output. The forward push and back push of the joystick correspond to the same analog output. The forward push corresponds to the switch control in the forward direction and stepless speed regulation , The reverse is the same.

If two joysticks are pushed forward synchronously, the trolley will move forward. If one pushes and the other does not push, the trolley rotates in a circle along the center point of the side that is not pushed. If one joystick is pushed forward, one joystick is pushed backward. , Then the trolley is reversing on the spot.

2) Layout 2 spare buttons, both are set to self-locking hold mode, and no interlock logic is set, each button corresponds to the receiver side corresponding to 1 normally open relay output;

3) 1 built-in LCD screen, which routinely displays battery power, signal strength, and operation button prompts;

4) Start+emergency stop mushroom knob, start layout is rotary switch or self-locking button, emergency stop is European emergency stop mushroom type, self-locking hold mode, corresponding to 1 switch signal output. Start is to start the power switch of the transmitter itself, and at the same time, the output control loop of the receiver is turned on. At this time, the device at the controlled end is energized and the emergency stop is photographed, and all outputs can be cut off instantly. The start button on the transmitter side is turned off, the transmitter side power is turned off, and after 5 seconds, the receiver side can also emergency stop by itself to ensure safety!

The product model DH-Z2YL2F of 2 single-axis rocker crawler chassis remote controllers (DC24V/100m/1 transmitter and 1 receiver/switch quantity 6 channels analog quantity 2 channels).

Specification

Product Description


Default configuration

1. Transmitter * 1 piece

2. Receivers * 1 piece

3. Strap * 1 piece

4. Free Joystick * 1 piece

5. The receiver comes with 1m cable connector

6. Operation and Maintenance Manual

Attentions

1. When you order, please remark the voltage. Or you can contact to supplier.

2. Generally, the receiver is installed in the distribution box. If not, we will prepare the receiver housing for external installation. If you neet the shell, please let us know when placing the order.

Warranty & Service

1. Customized logo and trademark are warmly-welcomed.
2. Good after-sale services offered.
3. 1 year warranty period, spare parts supply for free.
4. 100% QC inspection before shipment.
