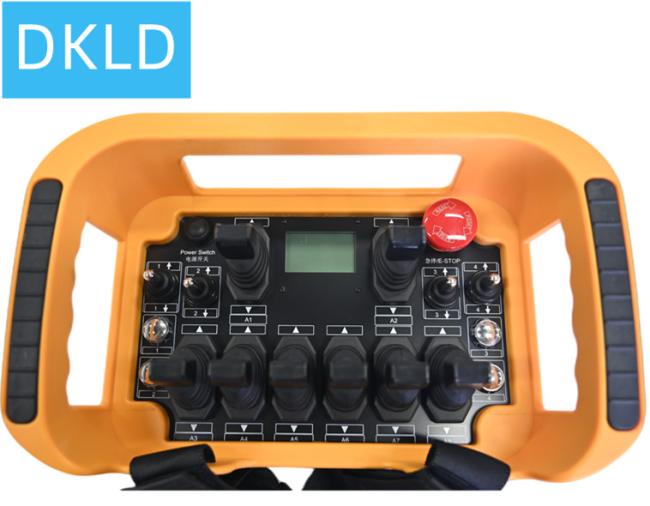

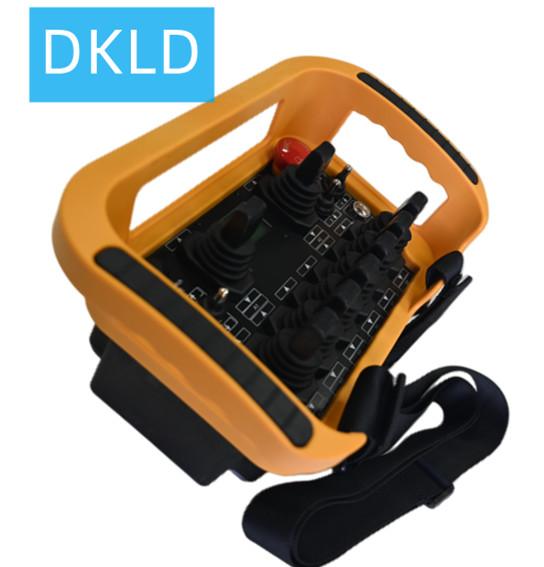

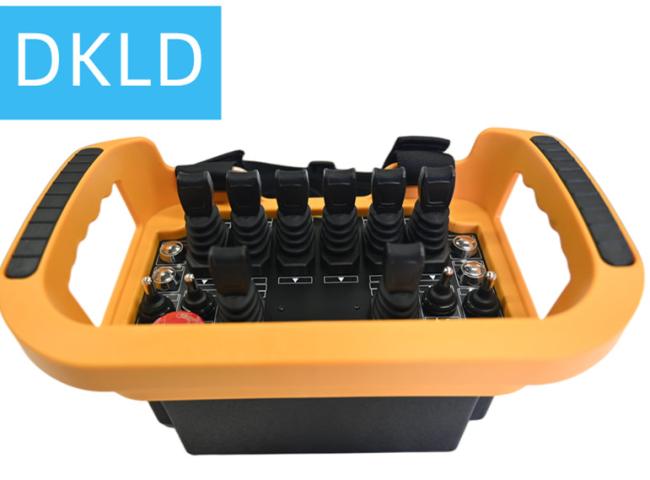

Eight single-axis proportional rods Wireless Remote Control for concrete pump truck
8 single-axis proportional rods 4 buttons 4 dial rods type wireless remote control for engineering vehicles/concrete pump car remote control
Product Features
This model has 8 joysticks, each joystick is proportional, can correspond to the receiver end analog output, used to control the electromagnetic proportional valve and then control the hydraulic valve and then drive the hydraulic telescopic arm extended and retracted or rotate around the action, the greater the scope of the joystick push the faster, Can be corresponding to the receiver end output 0-3000mA or 0-18v or -10V-0-+10V and other different ranges of control, for concrete pump truck, excavator, scraper, tunnel boring machine, rotary excavator, turning machine, shield machine and other equipment for multi-function wireless control, wired control.
8 rocker industrial remote control receiver output, CAN be designed to switch quantity + analog quantity direct output mode, can also output a variety of data interfaces such as CAN bus, DP interface, Profinet, RS485, RS232 and other different data interface mode, to output a variety of control instructions with digital signals, Directly with the device side controller or PLC or ARM docking control, so as to achieve one-way or two-way mode of control interaction.
This model can be configured with LCD screen, can also be configured with multiple indicator mode, can be used to indicate a variety of function display, note good need to mark, can be one-way warning display, can also be feedback information display.
Specification
| Size | 280*180*155mm |
| Transmitter Weight | 1.2kg |
| Transmitter Antenna | inside |
| Receiver Antenna |
Inside / optional external antenna |
| Button life | ≥ 1 million times |
| Panel & Button Material | stainless steel |
| Shell material | 90% industrial reinforced nylon plastic + 10% industrial chemical fiber |
| Transmitter power supply | Embedded lithium battery |
| Receiver power supply | DC12V/24V or AC 36V/220V/380V (AC by external transformer) |
| Temperature range | -25℃~+75℃ |
| Button Text | Arrow / English |
| Enclosure protection class | IP65 |
| Application | Gantry crane,JCB,Hoist,Port crane,Cantilever crane,Ship crane,Bridge erecting machine,Beam lifter,Elevator,Lifting platform,Windlass,Shearing machine,Sand Screening Machine,Industrial furnace door,Winch etc. |
Products
Default configuration
1. Transmitter * 1 piece
2. Receivers * 1 piece
3. Strap * 1 piece
4. Free Joystick * 1 piece
5. The receiver comes with 1m cable connector
6. Operation and Maintenance Manual
Attentions
1. When you order, please remark the voltage. Or you can contact to supplier.
2. Generally, the receiver is installed in the distribution box. If not, we will prepare the receiver housing for external installation. If you neet the shell, please let us know when placing the order.
1. Customized logo and trademark are warmly-welcomed.
2. Good after-sale services offered.
3. 1 year warranty period, spare parts supply for free.
4. 100% QC inspection before shipment.
