Tubular Vitreous Enamelled Wirewound Resistors
Price:
US$3-$50 per pcs
MOQ:
100
Delivery Time:
7-10 working days
Brand:
JDC
Product Description
Tubular vitreous enamel wirewound resistor is a cylindrical ceramic tube at both ends clips to fixed terminals. Ceramic tube winding copper nickel or nickel-chromium alloy resistance wire. Surface coated with glazed porcelain, after high temperature treatment, the resistor dried and insulation fixed, then fitted with fixed foot frame.
Features:
-
Rated power: 8W-500W
-
Small size, high power.
-
Glaze coating, simple structure, easy to install.
-
Fixed resistance and adjustable resistance optional.
Applications:
-
Electric tools, Consumer product applications.
-
Power supply, high voltage applications.
-
Welding machine, switch applications.

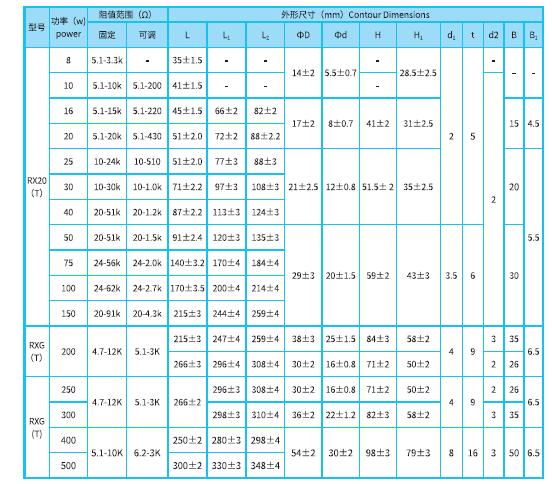

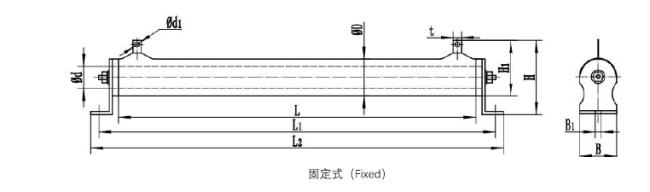

Dimensions:
