Power Ceramic Wirewound Resistors 5W-10W For Inrush Current Prevention
Price:
$0.08-$0.15
MOQ:
10000PCS
Delivery Time:
7-10 working days
Brand:
JDC
Product Description
Ceramic Fusible Resistors Circuit Breaker for the prevention of inrush current
SQF fusible resistor is using metal alloy wire Wounded on ceramic core, then connected with Thermal fuse and this object with terminals inserted into the ceramic case which has good thermal conductivity, and finally sealed and insulated with Inorganic fillers.
Features:
- Suitable for the prevention of inrush current for switching regulations.
- Excels in surge withstanding capability
- Respond quickly to over loading as well as external overheating.
- The dispersion in fusing characteristics has been minimized and assure high stability performance
Dimensions:
| Type | Rated power (w) |
Temperature Characteristics | Tolerance | Resistance range(Ω) | Dimension (mm) | |||||
| Current(A) | Fuse Temperature(℃) | H±1.5 | L±1.0 | W±1.0 | P±1.0 | d±0.05 | ||||
| SQF | 5 | 2 | 145 |
±5%(J) |
1~100 | 25 | 12 | 8.0 | 5 | 0.75 |
| 7 | 2 | 145 | 1~100 | 25 | 13 | 10 | 5 | 0.75 | ||
| 10 | 10 | 150 | 1~100 | 39 | 13 | 10 | 5 | 0.75 | ||

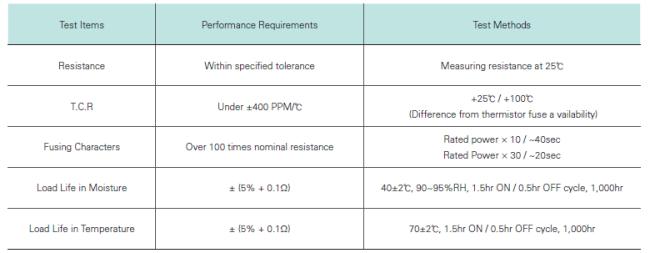

Electrical Performance:
