High Voltage Metal Glaze Film Resistors, Max Voltage to 55KV

RI80 high voltage Metal Glaze Film Resistors were specifically designed for general purpose high voltage systems in industrial. RI80 series uses JDC proprietary thick film Metal Glaze resistive element and Serpentine Pattern Design which provides ideal cost efficient, stability, precision and high voltage characteristics for a wide range of measurement, voltage divider circuits, and control functions in high voltage power electronics applications.

By utilizing specific ceramic core materials with optimum processing, Token are able to control, very tightly in manufacturing, the important ultra-stable performance parameters in operating temperatures from -55°C to +70°C.

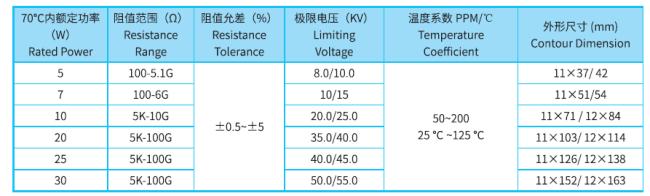

Features:

• Rated Wattage from 5W to 30W. Max Working Voltage up to 55K
• Temperature Coefficient: 200 ppm/°C to 400 ppm/°C.
• Resistance Tolerance G( ±2%), J(±5%), K(±10%).

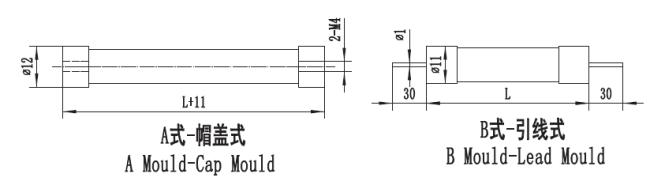

Dimensions:
