FY-3200at Infiniti Solvent Printer H6/H4 with Alpha 1024-24pl head
high speed infiniti FY-3200at plus H6/H4 solvent printer with Alpha 1024-25pl head
Why choose infiniti FY-3200at solvent printer?
1. Our company establish in 2007, with 8years of printer export experience.
2. With full experience, we know printer well, we can provide you professional solution
3. 10 Engineers with full printer skill, and they are english speaking, communicate free.
Engineer online 24hours, solve your daily work problem intime.Engineer can come to serive,
also welcome your engineer visit us for free traning.
4. New model always showing in our showroom, welcome your visit for check and printing
sample.
5. We have enough stock in warehouse, ensure fast shipment
product features of Alpha 1024-25pl solvent printer
1. Specially enforced stainless steel for long-life strong and stable frame structure.
2. 32 sets of nitrogen treated grid rollers with hardness of 1000 degrees for long
life of high speed printing.
3. Double linear guide.
4. Led UV lamp,which is moreconvenient in use and better in curing,with longer service life,
less energy consumption and more environmentally friendly.
5. Double differential speed control design,auto smart tention bar,to ensure unattended printing to
the very end of each media roll.
paraments of infiniti solvent printer:
| Model | FY-3200AT PLUS/H6 | FY-3200ATPLUS/H4 | |
| Printhead | Drop-on-demand piezo ɑ1024HG-L | ||
| Number of Printhead | 6 | 4 | |
| Print width | 3200mm(125.98") | ||
| Print Speed | 2PASS | 390m2/h | 260m2/h |
| 3 PASS | 260m2/h | 172m2/h | |
| 4PASS | 195m2/h | 131m2/h | |
| Media | Width | 3300mm | |
| Type | Banner,vinyl,mesh and other roll to roll outdoor printing material. | ||
| Ink | Solvent ink. ECO solvent ink | ||
| Ink supply system | Negative pressure ink supply | ||
| Cleaning and Mantenance system | Individual positive pressure cleaning,manual one-piece capping, LED lamp at home position | ||
| Heating System | Front,middle and back heater,IRdryer,fan cooling system | ||
| RIP Software | United Fancy / Maintop | ||
| Print Interface | Rj45 | ||
| Power Specifcation | Printer | AC220V 50HZ 5A 1100W | |
| Dryer | AC220V 50HZ 33A 7200W | ||
| Platfcrm heating | AC220V 50HZ 12A 2700W | ||
| Printer Dimension | L4992mmxW1105mmxH1649mm 1087KG | ||
| Package Size | L5050mmxW1150mmxH1820mm 1367KG | ||

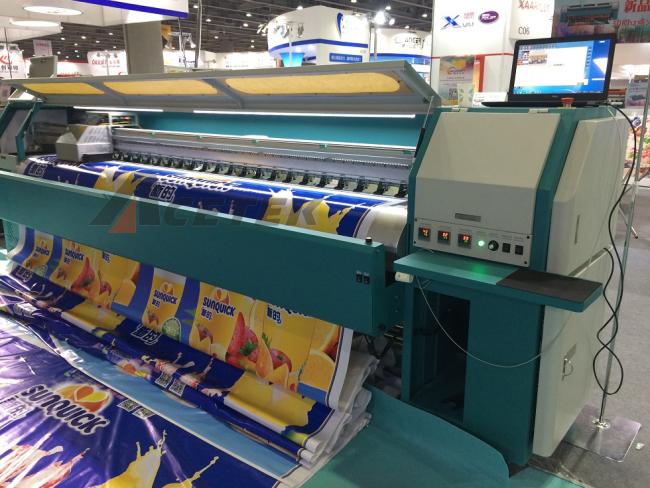

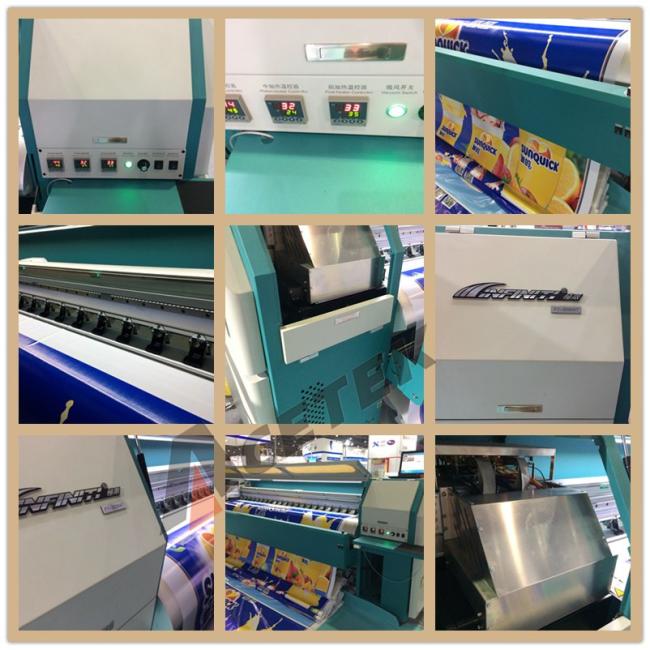

the pictures of infiniti H6 solvent printer with alpha 1024 head:
