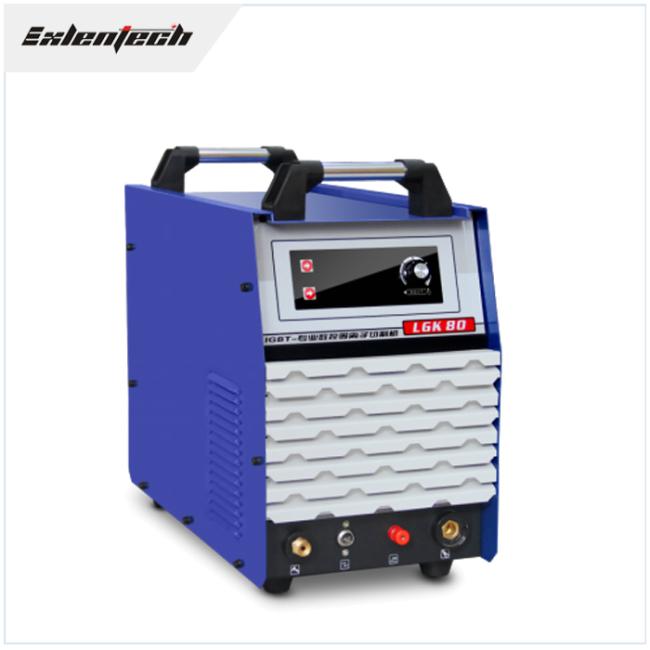

Inverter CNC Portable Plasma Cutter 80A Cutting 30mm Three Phase
Inverter CNC Portable Plasma Cutter 80A Cutting 30mm Three Phase
Inverter Portable Plasma Cutting Machine CUT80 With Max Cutting Thinkness 30mm Suitable With CNC
Plasma Cutter Features:
1) Applicable to automatic cutting equipment.
| Model | CUT-80 |
| Input power Voltage Frequency(V,Hz): | AC380(three phase)±15%,50/60 |
| Rated input power capacity(KVA): | 7.9 |
| No-load voltage(V): | 238 |
| Output current range.(A): | 20-60 |
| Rated output voltage(V): | 104 |
| Duty cycle (%)(I25ºC): | 60 |
| No-load loss(w): | 40 |
| Arc-starting: | HF |
| Efficiency(%): | 85 |
| Power factor (COSφ): | 0.93 |
| Insulation class: | F |
| Weight(KG): | 23 |
| Overall dimension(mm): | 500×263×365 |
| Case protection degree: | IP21S |
| Air compressor displacement(S): | 0.25 |
| Max cutting thickness(mm): | 30 |
FAQ
1. Q: Are you a factory or trading company?
A: We're a MANUFACTURER.
2.Q: What certificates do you have ?
A: We have gained the certificate of CE, EMC, ROHS, CSA, SAA and ISO9001.we can satisfy your regional requsted if necessary.
3.Q: Can you do OEM ?
A: Yes. We offer OEM/ODM service apart from our standards.
4. Q. Can I have a sample?
A: Yes, we welcome samples or small trial orders for your testing purpose. Standrad samples usually few days ready, but special requested samples might need 2 weeks. It depends and can be discussed.
5. Q: Why choose us?
A:Firstly, we located in Shenzhen the high-tech innovation center, we can guarantee our supply chains are well sourcing and quality controled under our management system. Secondly, we have teams in China, UK, USA, can reply inquiries in different times without jet lag.
Shipping:
We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, or welder machines, usually delivery via express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.
