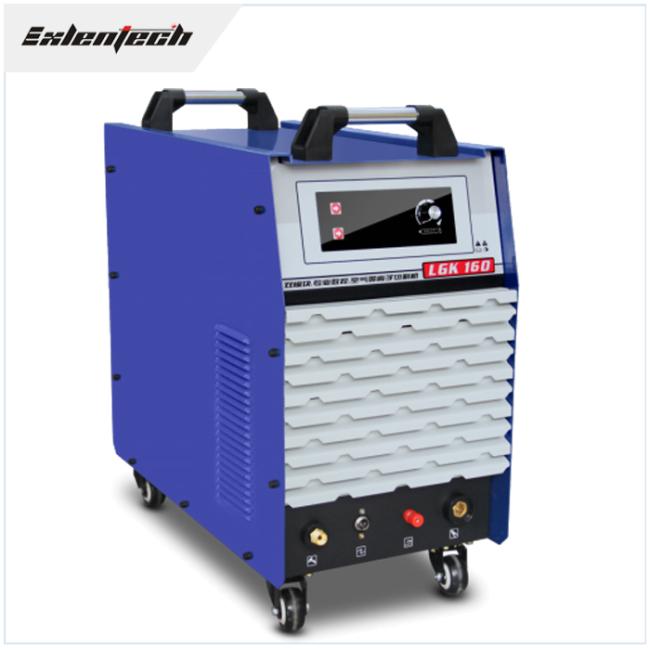

Inverter IGBT Portable Mini Plasma Cutter 3 Phase 160amp Self locking
Inverter IGBT Portable Mini Plasma Cutter 3 Phase 160amp Self Locking
Hight Duty Cycle Plasma Cutting Machine With Inverter Module IGBT Technology Max Cutting 65mm
Plasma cutter machine Characteristics:
1. Suitable for low carbon steel, stainless steel, aluminum and other non-ferrous metal cutting.
2. It can be equipped with CNC cutting platform to use.(preset arc voltage interfaces).
3. IGBT module dual inverter, small size, light weight, easy to move.
4. Latest snubber circuit,make the machine more stable.
5. High-frequency arc, excellent arc resistance instantaneous.
6. Self-locking, non-locking function.
7. Arc energy is highly concentrated,notched narrow, less dross, cutting straight face.
8. Circuit boards and other components use three anti-treatment, lower failure rate.
9. High efficiency, high power factor,it is a highly efficient energy-saving equipment.
| Model | LGK/CUT-160 |
| Input power Voltage Frequency(V,Hz): | AC380(three phase)±15%,50/60 |
| Rated input power capacity(KVA): | 20 |
| No-load voltage(V): | 269 |
| Output current range.(A): | 20-160 |
| Rated output voltage(V): | 125 |
| Duty cycle (%)(25ºC): | 100 |
| No-load loss(w): | 60 |
| Arc-starting: | HF |
| Efficiency(%): | 85 |
| Power factor (COSφ): | 0.93 |
| Insulation class: | F |
| Weight(KG): | 50 |
| Overall dimension(mm): | 562×303×467 |
| Case protection degree: | IP21S |
| Air compressor displacement(S): | 0.36 |
| Max cutting thickness(mm): | 65 |
FAQ
1. Q: Are you a factory or trading company?
A: We're a LISTED COMPANY which start to manufacturing from 2006.
2.Q: What certificates do you have ?
A: We have gained the certificate of CE, EMC, ROHS, CSA, SAA and ISO9001.we can satisfy your regional requsted if necessary.
3.Q: Can you do OEM ?
A: Yes. We offer OEM/ODM service apart from our standards.
4. Q. Can I have a sample?
A: Yes, we welcome samples or small trial orders for your testing purpose. Standrad samples usually few days ready, but special requested samples might need 2 weeks. It depends and can be discussed.
5. Q: Why choose us?
A:Firstly, we located in Shenzhen the high-tech innovation center, we can guarantee our supply chains are well sourcing and quality controled under our management system. Secondly, we have teams in China, UK, USA, can reply inquiries in different times without jet lag.
Q:WHY CHOOSE US?
1.100% local people,more then 5years experience on assambling.
2.Trial order 100% inspection on finished product,follow orders by 10-20% quality inspection on finished product.
3.Competitive price under high quality warranty.
Q:WHAT ABOUT OEM/ODM AND DESIGN OF THE PRODUCT?
We have more then 30people for researching new technology on welding machines,helping customers to do ODM/OEM, and can help customer to design and modify the product.
Q:Can you supply the sample?Q:Can you supply the sample?
We can supply the sample to you,but we should charge the sample fee.The sample fee can be returned after your order comfirmed.
