Loose Hooked Ends Concrete Steel Fiber Shocking Resistance

Hooked End Steel Fiber introduction

Hooked end steel fiber is manufactured by high quality wire rod with 6.5mm, which has excellent

mechanical properties including high tensile strength. Hence, the average tensile strength of the

reinforced fibre surpasses 1000MPa. Due to this high strength,the uniform distribution of fibers,

stresses can be fully dispersed and cracking be effectively controlled.

Yusen Steel fibers are designed specifically for the reinforcement of concrete, mortars and
other cementitious mixes.It is a cold drawn wire fibre deformed with hooked ends which has
perfect performance in the concrete mix.
Yusen Steel fiber is made according to European Standard EN 14889-1:2006 and has been
specifically designed to meet the performance and requirements in the construciton.

Specification of Hooked End Steel Fiber

• Diameter: 0.5 to 1.0mm;
• Length: 25 to 60mm;
• Aspect Radio: ≥50;
• Tensile strength: ≥1000Mpa;
• Material: Low carbon steel bar;
• Coating: Non, Bright;
• Packaging: 1000kg per plastic bag and/or 20kg per paper bag.

Advantage of Hooked End Steel Fiber

• Significantly increase impact, shatter and abrasion resistance
• Easy-to-use;
• Extend durability and fatigue resistance;

Application

• Shotcrete, tunnel linings
• Mass concrete composite deck construction
• Precast concrete.
• Industrial slabs on ground

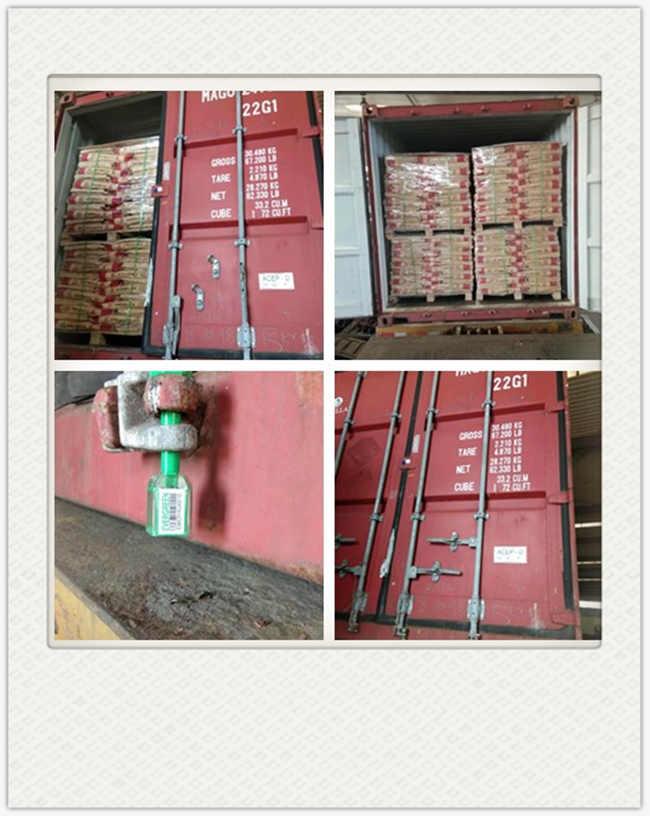

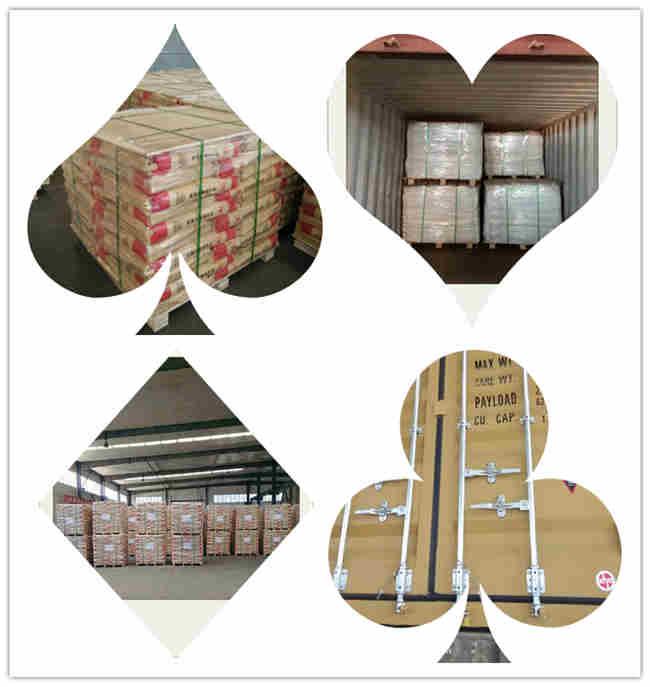

Packing and Delivery
