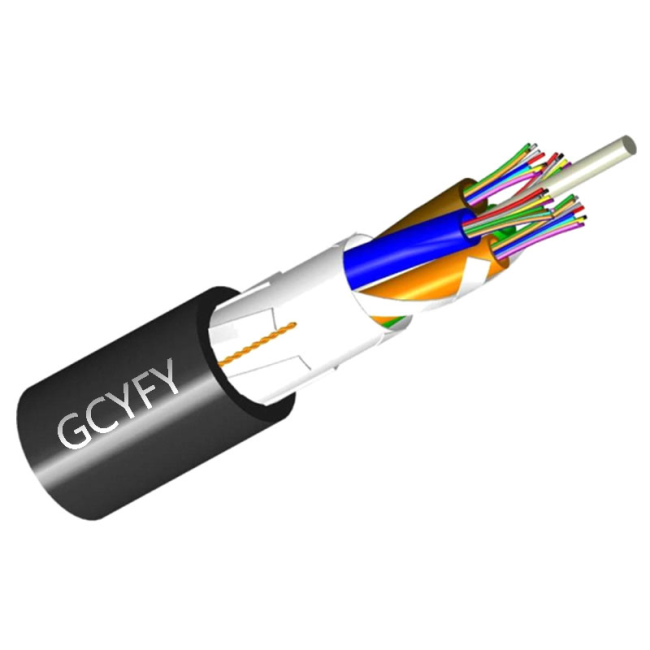

Gcyfxty Gcyfty 12 24 48 72 96 144 Core Micro Air Blown Outdoor Fiber Optic Cable
Gcyfxty Gcyfty 12 24 48 72 96 144 Core Micro Air Blown Outdoor Fiber Optic Cable
This product has good mechanical performance and the environmental performance, weight light, diameter is small, optical fiber capacity is big, sheath friction coefficient is low, the air blows the speedfast, the distance is long, the construction efficiency is high, the product cost is low.
Features
• Small size and light weight
• Tube filling compound providing key protection for fibres
• High fibre density, allowing full use of duct holes
• Allowing to blow by phases to reduce initial investment
• High blowing speed up to 50m/min, and long blowing distance up to 1000m
• Allowing to blow out and replace with new cables to keep technical superiority
• Avoiding destructive excavations and no need to pay high fees for deploying permission, applicable for constructions in crowded metropolitan area networks
• Allowing to cut micro ducts anywhere anytime for branch without influences on other cables, saving manholes, hand holes and cable joints
Technical Characteristics
1. Fiber count: 12～144
2. Low loss, low dispersion
3. Unique excess length control keeps the fiber loss low and stable, ensuring cable's operation in complicated environment.
Performance
1. Applicable to MAN and access network communication, easy for capacity expansion.
2. Minimum bend radius: Static 10D, dynamic 20D.
3. Operation temperature: -40～+70℃.
Technical Characteristics
|
Type |
O.D. (mm) |
Weight (Kg/km) |
Tensile strength Long/short term (N) |
Crush Long/short term (N/100mm) |
Number of tubes/fibre count per tube |
|---|---|---|---|---|---|
| GCYFY-12B1.3 | 4.5 | 16 | 0.3G/1.0G | 150/500 | 2/6 |
| GCYFY-24B1.3 | 4.5 | 16 | 0.3G/1.0G | 150/500 | 4/6 |
| GCYFY-36B1.3 | 4.5 | 16 | 0.3G/1.0G | 150/500 | 6/6 |
| GCYFY-24B1.3 | 5.4 | 26 | 0.3G/1.0G | 150/500 | 2/12 |
| GCYFY-48B1.3 | 5.4 | 26 | 0.3G/1.0G | 150/500 | 4/12 |
| GCYFY-72B1.3 | 5.4 | 26 | 0.3G/1.0G | 150/500 | 6/12 |
| GCYFY-96B1.3 | 6.1 | 33 | 0.3G/1.0G | 150/500 | 8/12 |
| GCYFY-144B1.3 | 7.9 | 52 | 0.3G/1.0G | 150/500 | 12/12 |
| GCYFY-192B1.3 | 7.9 | 52 | 0.3G/1.0G | 150/500 | 16/12 |
| GCYFY-216B1.3 | 7.9 | 52 | 0.3G/1.0G | 150/500 | 18/12 |
| GCYFY-288B1.3 | 9.3 | 80 | 0.3G/1.0G | 150/500 | 24/12 |
| GCYFY-144B1.3 | 7.3 | 42 | 0.3G/1.0G | 150/500 | 6/24 |
| GCYFY-192B1.3 | 8.8 | 76 | 0.3G/1.0G | 150/500 | 8/24 |
| GCYFY-288B1.3 | 11.4 | 110 | 0.3G/1.0G | 150/500 | 12/24 |
| GCYFY-432B1.3 | 11.4 | 105 | 0.3G/1.0G | 150/500 | 18/24 |
| GCYFY-576B1.3 | 13.4 | 140 | 0.3G/1.0G | 150/500 | 24/24 |

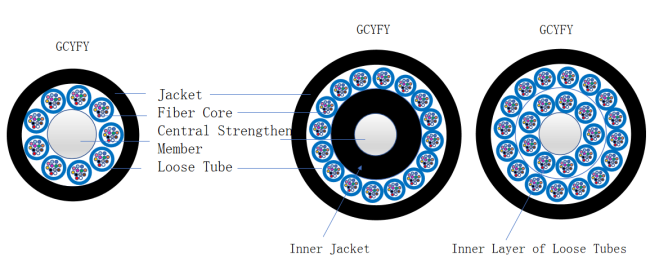

Structure
