380V Paper Slitting Rewinding Machine , CE Narrow Aluminium Foil Slitting Machine
Price:
Negotiation
MOQ:
1 set
Delivery Time:
30 working days
Brand:
ruiting
Product Description

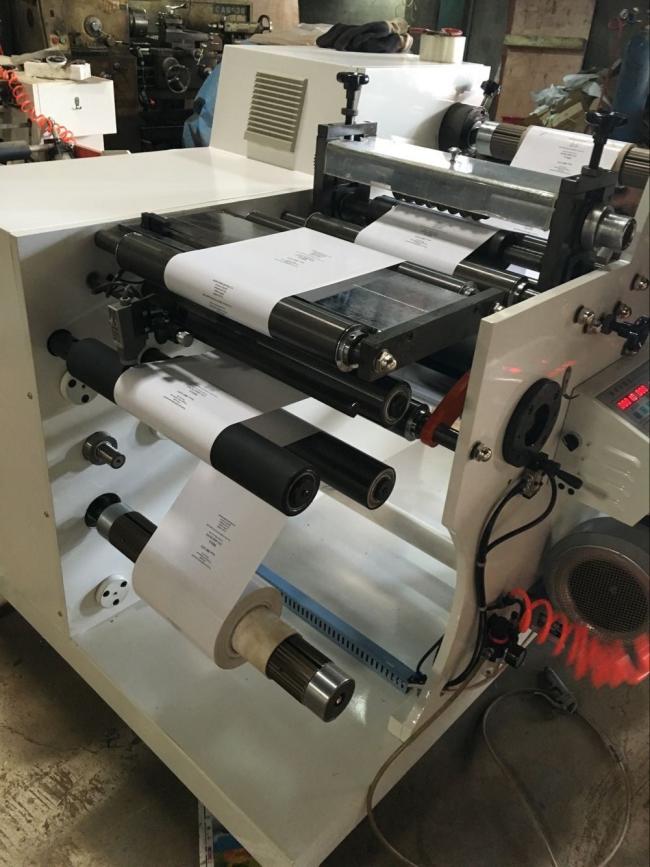

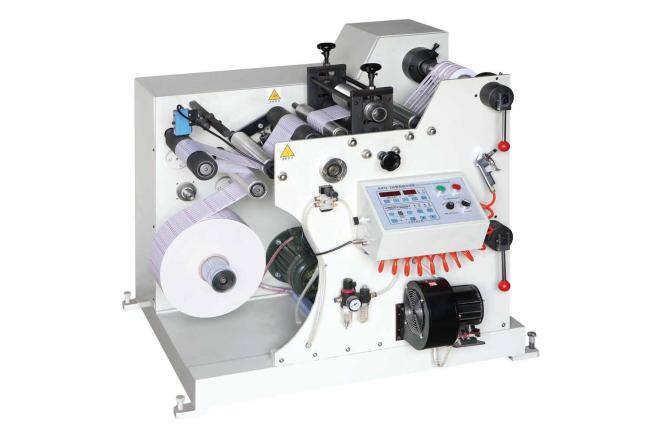

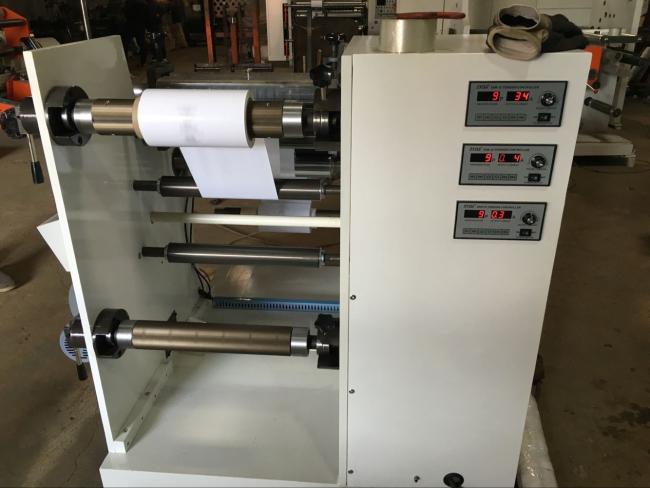

300B Narrow Alu Foil Roll Slitting Machine with Auto Taper Tension Control
Product Description
- Use one photocell eye in the web guide system.

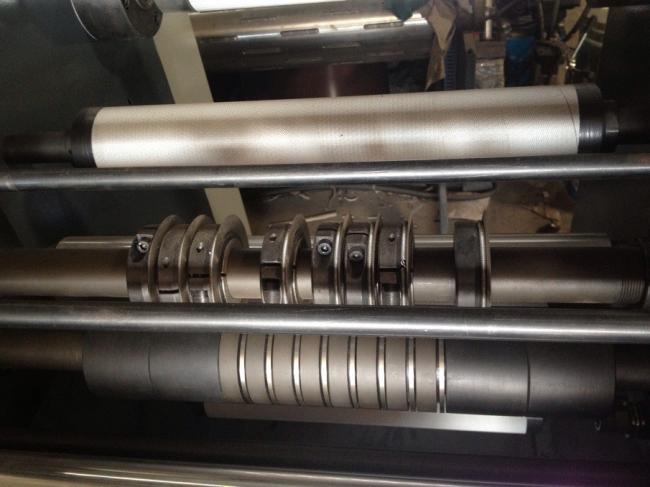

- Have 8 sets slitting knife install in the machine
- One blower fan for wasting
- Unwinding use auto taper tension control
- The unwind and rewind use 3 inch air shaft
- Frequency converter
Main Technical Specification:
| Max web width | 300mm |
| Max rewinding diameter | 400mm |
| Max. unwinding diameter | 500mm |
| Slitting width | 20mm |
| Power Voltage | AC220V±10% |
| Cutting precision | 0.2mm |
| Total Power | 2KW |
| slitting peed | 10-160m/min |
| Overall dimensions(L*W*H) |
1.1*1.2*1.3m |
| Machine weight | 500kg |
