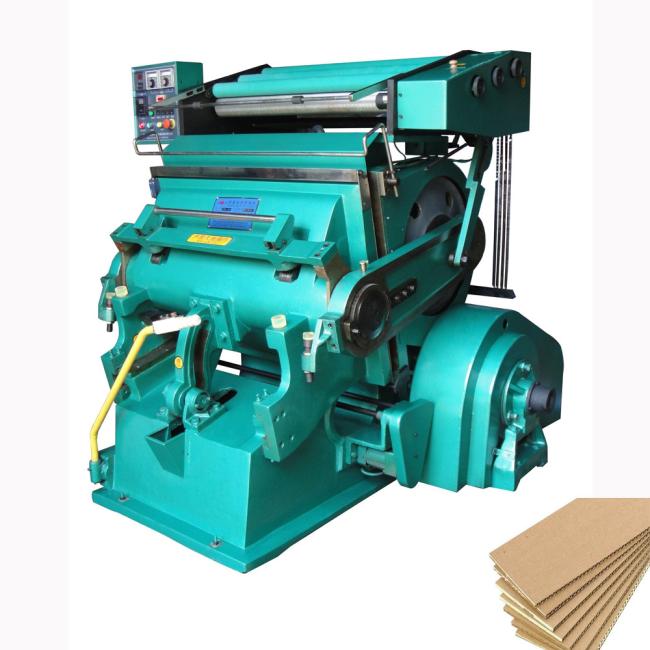

Jigsaw Puzzle Die Cutter Machine
Title
Jigsaw Puzzle Die Cutter Cardboard Boxes Die-Cutting Machine With Hot Stamping
Product Description
Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing.
High strength due to one piece casting by using top-ranking material for machine body.
With functions of single, continuous and opening dwell operation, dwell range is adjustable.
Flywheel is with big moment of force and large pressure.
Single plate electromagnetic clutch is sensitive and reliable.
Operating position is reasonably arranged, moving-bed can be opened to its optimum.
Safety system is reliable.
Main Technical Specification:
| MODEL | 1100 |
| Max. Platen Area available | 1100*800mm |
| Max. Stamping area available | 1050*775(effective heating area) |
| Heat power | 12kw |
| Thermoregulation range | 1-170 ℃ |
| Working speed | 24±2(strokes/min) |
| Foil-delivered length | 1-665mm |
| Skip frequency | 1-99times |
| Foil-delivered group | 3 groups |
| Foil-feeding precision | 1mm |
| Working pressure | 170t |
| Motor power | 4kw-6h/380v |
| Net Weight | 3800kg |
| Dimension (L*W*H) | 2800*1800*1900mm |
Material details:
|
material
|
Jigsaw Puzzle,Cardboard,foam
|
|
cutting mould
|
made by wooden
|
FQA
1.Are you factory or trading company?
We are factory.
2.What is your after service?
We offer customer a lifetime service.
3.Do you have CE certificate?
Yes, we have CE certificate of our machines.
4.What is the shipping time?
Around 15-30 days, depend on different model.
5.What can I do if machine stop work?
You can email us, call us or online video calls, face to face solve problem.
If the spare parts or something broken, in the warranty time,
we offer free.
