Curing Offset 300W LED UV Light Module 365nm 385nm 395nm 405nm
300W UV LED Module UV LED Curing Offset For Curing 365nm 385nm 395nm 405nm
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
| Product Name | UV LED Module 3656 |
| Power | 300W |
| Color | UV |
| Number of lamp beads | 30 pcs |
| Diode type | 6565-6868 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30, 60, 90, 120 degree |

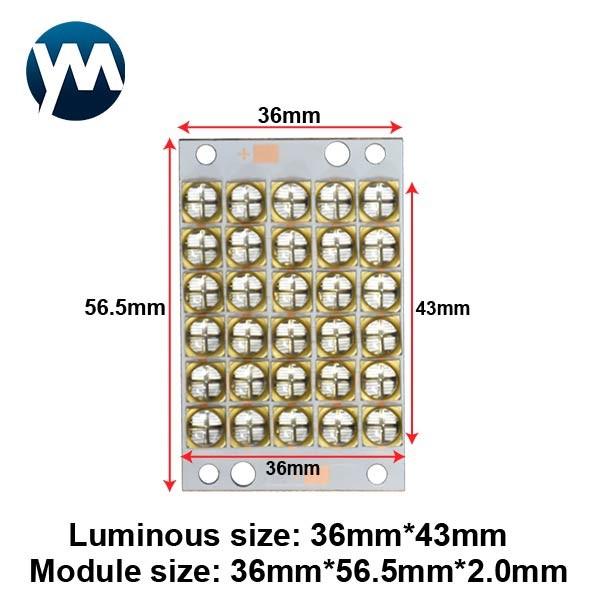

| Module size | 36mm*56.5mm*2.0mm |
| Luminous Size | 36mm*43mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 39-45V |
| Current | 5-7.5A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package module |

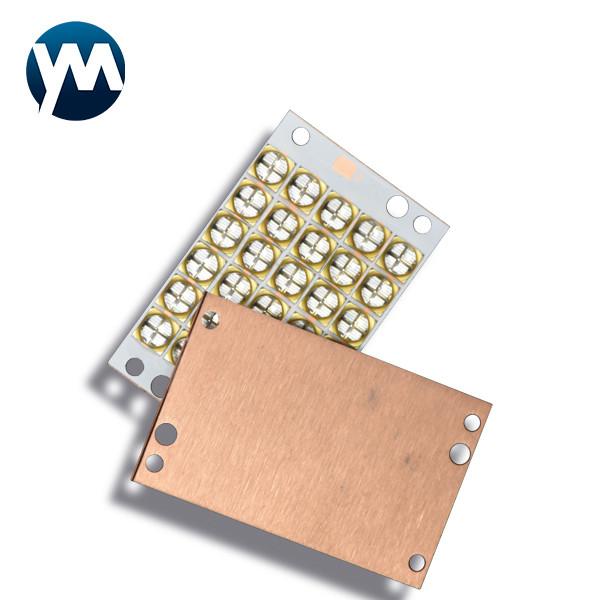

| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
