Chinese Manufacturer UV LED Light 40w smd 395nm Ultraviolet LED Module
Description of UV Light Module:
1. Features:Fast, flexible curing and drying
2. Cool Printing Environment: Enables to print on heat sensitive substrates, viz. thin slides, self-adhesive sheet,
stretch PVC materials, and more. Minimum heat resistance allows effective bi-directional calibration.
3. Easy Switch OFF and ON: Easily switch ON and OFF without degradation of intensity. Thus, there is no warm up
time which leads faster operation with high productivity.
4. Long life of the Machine: LED has a long life. Thus, they offer long term benefits without lamp down time or any other
consumable cost. Power Saving: Consumes low electricity. Thus, it saves power and offers cost effective solution.
5. Environmental Friendly: Doesn’t consist mercury (a non-disposable element) and ozone gas that can harm the environment.

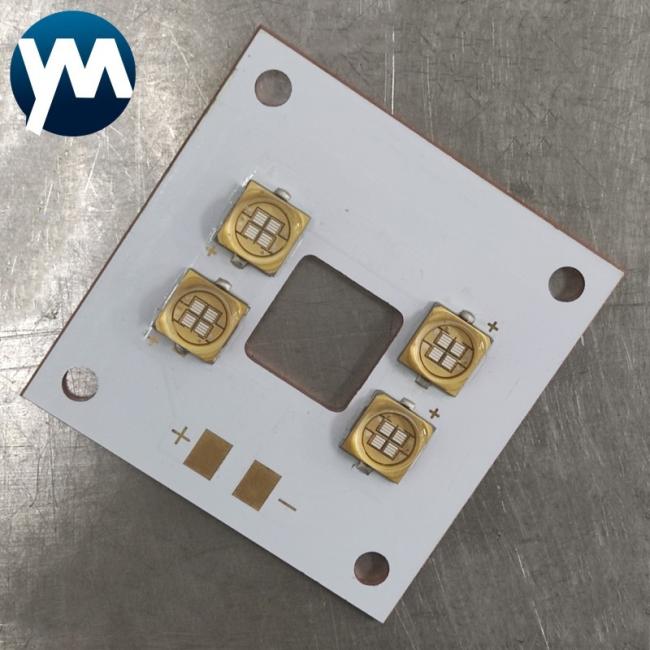

| Product Name | YM-4040-UV LED MODULE |
| Power | 40W |
| Color | UV |
| Number of lamp beads | 4 pcs |
| Diode type | 6565 smd |
| Lens Material of Diode | Quartz |
| View Angle of the Lens | 60 degree |
| Module size | 40mm*40mm*2.0mm |
| Luminous Size | 16mm*27mm |
| Wavelength | 365nm, 385nm, 395nm, 405nm |
| Voltage | 25-30V |
| Current | 1-1.5A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package module |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000 hours |
| Warranty | 1 year |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
FAQ
Q1. What's the whole UV LED curing system including?
A:The whole UV LED curing system including UV LED Curing Controller + UV LED Lamp head.
Q2. What is the outer package of the product?
A: We use very strong export-specific carton packaging and wooden box packaging to ensure that the goods can be safely delivered to customers.
Q3.How to proceed an order for UV LED curing system?
A:Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q4. Is it OK to print my logo on UV LED curing system?
A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5.Do you offer guarantee and installation service for the products?
A:Yes, we offer after-sales service and one year warranty. The installation service can provided but should be payed according
different country and different system.
Application of UV LED Module
1. advertising Printing
2. 3D printing
3. Bar code printing
4. PCB board protection
5. Lens UV glue bonding
6. touch screen protection
7. furniture Varnish Drying
8. Medical instrument
9. Precision optics
If you have other needs, please contact us to provide you with the best solution.
