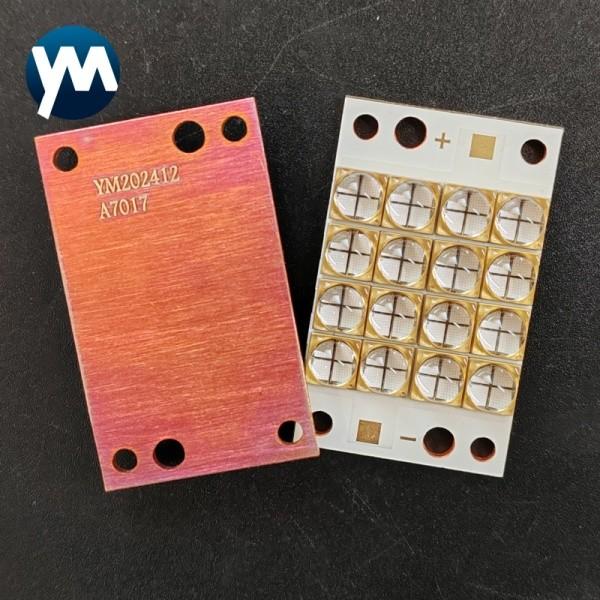

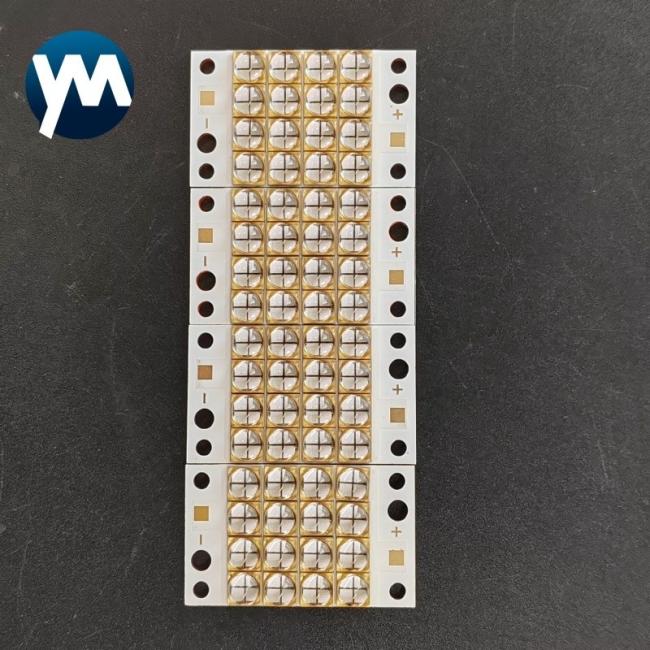

320W 6565 module PCB 365nm-405nm printing machine For uv led curing lamp flatbed
Advantages
- long life: the service life is more than 10 times that of the traditional lamp machine.
- cold light source, no heat radiation, the surface temperature of the illuminated product is low, solving the traditional heat injury problem. Particularly suitable for LCD edge sealing, film printing, etc.
- the heat is small, can solve the problem of large heat generation of traditional equipment.
- Instant lighting, no need to preheat to instantly achieve 100% power UV output.
- The service life is not affected by the number of opening and closing.
| Product Name | UV LED Module 2846 |
| Power | 320W |
| Color | UV |
| Number of lamp beads | 16 pcs |
| Diode type | 6565 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 60, 120 degree |
| Module size | 28mm*46mm*2.0mm |
| Luminous Size | 28mm*28mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 25-35V |
| Current | 10-12A |
| Encapsulation process | High temperature quartz lens package module |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 15000 |
| Warranty | 1 year |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
FAQ
Q1: Could we order small?
Yes, Welcome to contact us for small order.
Q2: How can I get your price list and Catalog?
Send an enquiry to us, our sales will reply you soon with price list and Catalog.
Q3: Can I get a sample to check the quality before bulk order?
Yes, sure. Welcome to test samples.
Q4: Any certificates for your products?
All our products do have CE, ROHS certificates.
Q5: Do you support OEM/ODM service?
Yes, we do have professional R&D team to offer OEM/ODM service.
Application
UV lamps are widely used in printing, plastic, wood, footwear, glass, handicraft polishing, painting and other fields.
1. In terms of spraying: ordinary phone case spraying, cosmetic case spraying, Plastic spraying of MP3 small
household appliance shells and other materials
2. Printing: Screen printing, offset printing, 5-color printing, etc. Use UV curing lamps to dry UV ink.
3. In the footwear industry, it is the use of ultraviolet radiation to illuminate the material on the sole of the shoe,
causing a chemical reaction and creating a good affinity between the adhesive and the sole and upper.
4. In terms of wood industry, it is used for curing UV paint coatings on the surface. Due to the excellent performance
If you have other needs, please contact us to provide you with the best solution.
