300W 3535 365nm-405nm for 395nm Uv Led Module Factories 3D Printer
300W Advantage of ultraviolet curing technology
- UV dryers take up less space, so shops can utilize more revenue-producing equipment
- UV uses less energy, therefore significantly cutting operating costs
- UV ink goes farther than solvent-based ink (up to 60 percent per gallon)
- UV curing can increase throughput four times over solvent-based processes
- Clean-up time practically disappears, adding to the time available for production
- UV technology doesn't pollute, inside or outside the shop, which means healthier employees, and a healthier, "greener" environment

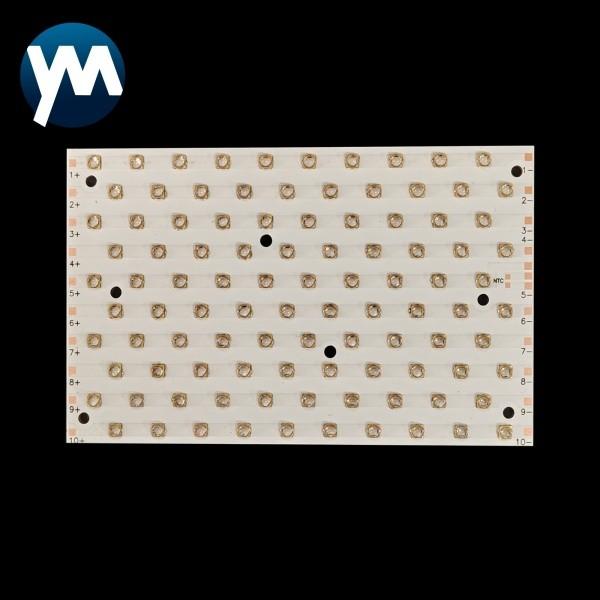

| Product name | YM-300W-13080 UV LED MODULE |
| Power | 300W |
| Color | UV |
| Number of lamp beads | 100 pcs |
| Diode type | 3535 pcb |
| Lens Material of Diode | quartz |
| View Angle of the Lens | 30°/45°/60°/90° /120°/180° |
| Module size | 130mm*80mm*2mm |
| Series-parallel | 10 series 10 parallel |
| Wavelength | 365nm, 385nm, 395nm, 405nm |
| Voltage | 34-38V |
| Current | 5-7A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package module |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 15000 |
| Warranty | 1year |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
Feature
1. High light intensity;
2. Energy saving: save 80% electrical energy than Mercury lamp
3. UV output adjustment: From 1% to 100%
4. Multiple control modes: Constant current, pedal control, intelligent optical and manual modes
5: Photoelectric induction, instant on/off, no preheating required.
6: Low energy consumption, just 20% of the ordinary uv lamp
7: No mercury, No Ozone, eco-friendly
8: Cold light source, low temperature
9: Stable output, high uniformity.
About us
FAQ
Q1. Can all the products be customized?
A: We are the factory of making UV lamp,UV accessories,UV curing system.All the our products can be made by the details you provide.
Q2 : How can you guarantee the quality?
A : Professional product quality inspection team ensures order defective rate; Otherwise, we take full responsibility according to our after-sales support system.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
If you have other needs, please contact us to provide you with the best solution.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
