UV Led Lamp 365nm 385nm 250W UV LED Module with Quartz Lens for Screen Printing and Curing Uv Ink for Inkjet Printer
Product Advantages
1. High light intensity;
2. Energy saving: save 80% electrical energy than Mercury lamp
3. UV output adjustment: From 5% to 100%
4. Multiple control modes: Constant current, pedal control, intelligent optical and manual modes
5: Photoelectric induction, instant on/off, no preheating required.
6: Low energy consumption, just 20% of the ordinary uv lamp
7: No mercury, No Ozone, eco-friendly
8: Cold light source, low temperature
9: Stable output, high uniformity.

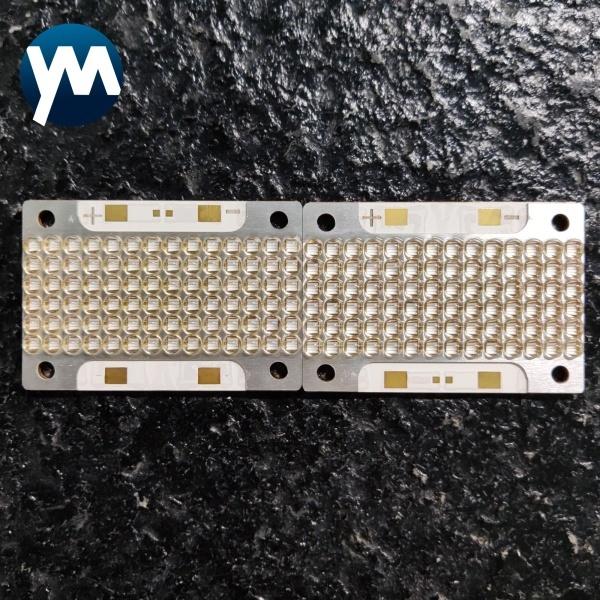

36W UV Led Module Product Description
| Product Name | YM-MB84-4833 UV LED Module |
| Power | 250W |
| Color | UV |
| Number of lamp beads | 84 pcs |
| Diode type | 3535 smd |
| Lens Material of Diode | Quartz |
| View Angle of the Lens | 60, 120 degree |
| Module size | 48mm*33mm*2mm |
| Luminous Size | 48mm*20mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 47.6-53.2V |
| Current | 3-4.2A |
| Chip Material | Seoul,LG,Epileds |
| Encapsulation process | High temperature quartz lens package module lamp |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 15000 |
| Warranty | 1 year |
| Application | Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens. |
| Place of Origin | Shenzhen, Guangdong, China |
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.
Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,
furniture industry, etc.
It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers
includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
