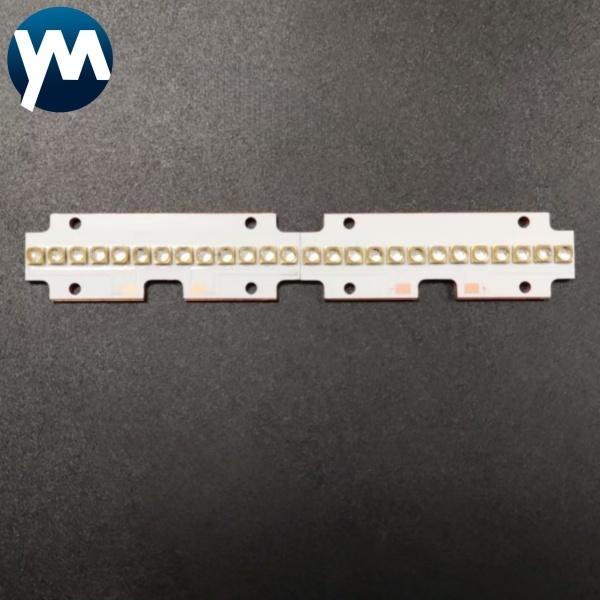

40W UV LED Lamp Module 365nm with 3535 Line Light Source UV LED Light for Printing and Curing
40W UV LED MODULE Features and Benefits:
1. Features:Fast, flexible curing and drying
2. Cool Printing Environment: Enables to print on heat sensitive substrates, viz. thin slides, self-adhesive sheet,
stretch PVC materials, and more. Minimum heat resistance allows effective bi-directional calibration.
3. Easy Switch OFF and ON: Easily switch ON and OFF without degradation of intensity. Thus, there is no warm up
time which leads faster operation with high productivity.
4. Long life of the Machine: LED has a long life. Thus, they offer long term benefits without lamp down time or any other
consumable cost. Power Saving: Consumes low electricity. Thus, it saves power and offers cost effective solution.
5. Environmental Friendly: Doesn’t consist mercury (a non-disposable element) and ozone gas that can harm the environment.
40W UV Led Module Product Description
| Product Name | YM-K13-5618 UV LED MODULE |
| Power | 40W |
| Color | UV |
| Number of lamp beads | 13 pcs |
| Diode type | 3535 smd |
| Lens Material of Diode | Quartz |
| View Angle of the Lens | 60, 120 degree |
| Module size | 56mm*18mm*2mm |
| Luminous Size | 56mm*3.5mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 44-49V |
| Current | .5-0.7A |
| Chip Material | Seoul,LG,Epileds |
| Encapsulation process | High temperature quartz lens package module lamp |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 15000 |
| Warranty | 1 year |
| Application | Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens. |
| Place of Origin | Shenzhen, Guangdong, China |
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.
Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,
furniture industry, etc.
It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers
includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
FAQ
Q1. Can all the products be customized?
A: Yes. All the our products can be made by the details you provide.
Q2. What is the outer package of the product?
A: carton packing or wooden packing.
Q3. Processing cycle?
A: Some of products we have in stock. Usually need about 5-12days to maked.
Q4: What's your warranty?
One year warranty.
All of the products will be tested before shipment.
Q5: Is it OK to print my logo on UV LED curing system?
Yes. Please inform us formally before our production .
Q6:What certificates you have?
A: CE,RoHS,SGS authentication already passed
Q7:What is the life time of the UV LED Lamp?
A:The life more than 15000hrs.
If you have other needs, please contact us to provide you with the best solution.
Umi@ymleduv.com , Thank you for your attention.
