60W UV LED 365nm 395nm PCB Uv Led Curing System with copper plate uv led chip
60W UV Led Module Product Advantages
1) Simple structure in uv led ,easy in installation and maintainence
2) Adopting advanced world famous brand components in uv led curing system
3) High-intensitive UV output
4) Complete temperature detection
5) Stabilized drive control
6) High-efficiency cooling and heat disspation

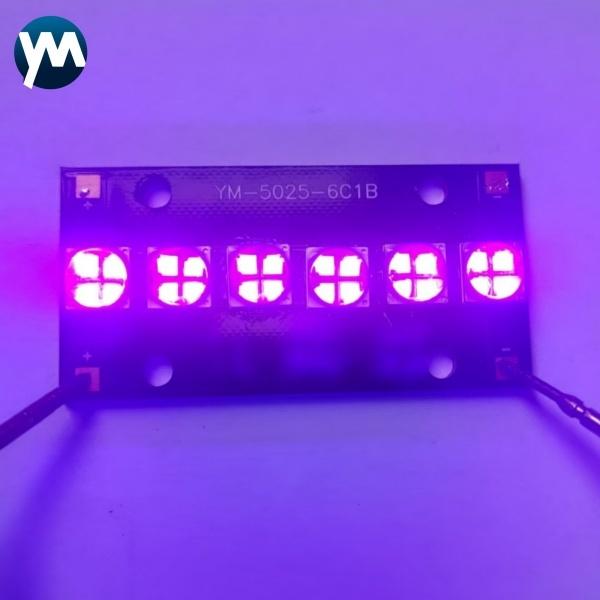

60W UV Led Module Product Description
| Power | 60W |
| Color | UV |
| Number of lamp beads | 6 pcs |
| Diode type | 6565 smd |
| Lens Material of Diode | Quartz |
| View Angle of the Lens | 60, 120 degree |
| Module size | 50mm*25mm*2mm |
| Luminous Size | 50mm*7mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 39-45V |
| Current | 1-1.4A |
| Chip Material | Seoul,LG,Epileds |
| Encapsulation process | High temperature quartz lens package module lamp |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 15000 |
| Warranty | 1 year |
| Application | Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens. |
| Place of Origin | Shenzhen, Guangdong, China |
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.
Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,
furniture industry, etc.
It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers
includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
FAQ
Q1.What's the wavelength of the UV LED lamp.
A: The wavelength of UV LED lamp usually are365-405nm. The wavelength for inkjet printer is
395nm, 385/395nm for printing machine,365nm for UVglue.
Q2.What's your LED chip brand?
A: The LED chip brand we use are LG, Epileds, Seoul, Nichia.
Q3.What's the cooling way?
A: We have water cooling and air cooling UV LED.
Q4.If the light intensity is adjustable?
A: Yes, the intensity is 0-100% adjustable. We designed different dimming system for different products.
Q5: Do you support OEM/ODM service?
A: Yes, we do have professional R&D team to offer OEM/ODM service.
If you have other needs, please contact us to provide you with the best solution.
Umi@ymleduv.com , Thank you for your attention.
