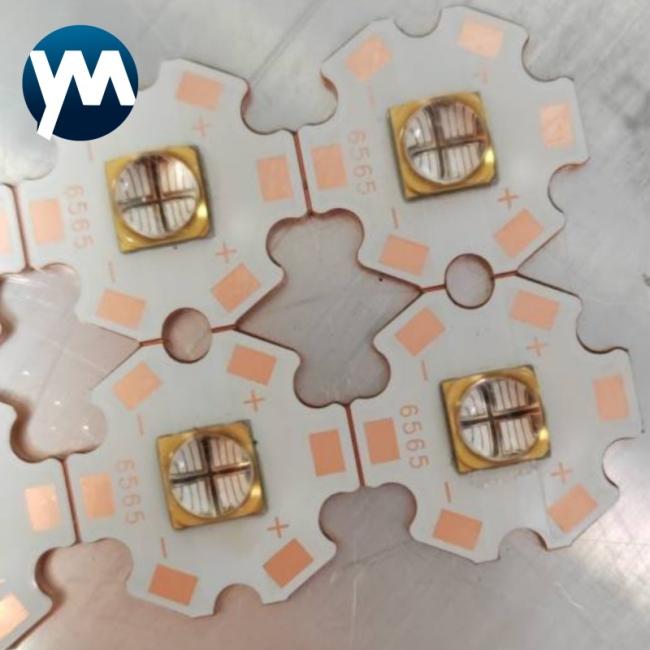

Smd 10W Uv Spot Curing System Light Uv Led 365nm 395nm 6565 UV Led Digital Printing Machines Lamp Chip LED Uva Curing
YM-10W UV Quartz Flat Lens Chip Features and Benefits:
1. Long life: the service life is more than 10 times that of the traditional lamp machine.
2. Cold light source, no heat radiation, the surface temperature of the illuminated product is low,
solving the traditional heat injury problem. Particularly suitable for LCD edge sealing, film printing, etc.
3. The heat is small, can solve the problem of large heat generation of traditional equipment.
4. Instant lighting, no need to preheat to instantly achieve 100% power UV output.
5. The service life is not affected by the number of opening and closing.
| Item | YM-10W UV LED Chip |
| Power | 10W |
| Color | UV |
| Diode type | 6565 smd type |
| Lens Material of Diode | quartz |
| View Angle of the Lens | 60 degree |
| size | 6.5mm*6.5mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 3.4-3.8V |
| Curent | 2-2.8A |
| Chip Material | LG,Seoul,Epileds |
| Welding temperature | ≤220 degrees |
| Lifespan (hours) | 15000 |
| Warranty | 1 year |
| Application | Apply in various UV printing industries, painting, UV lnk,and UV glue. |
| Place of Origin | Shenzhen, Guangdong, China |
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.
Q1: Could we order small?
Yes, Welcome to contact us for small order.
Q2: How can I get your price list and Catalog?
Send an enquiry to us, our sales will reply you soon with price list and Catalog.
Q3: Can I get a sample to check the quality before bulk order?
Yes, sure. Welcome to test samples.
Q4: Any certificates for your products?
All our products do have CE, ROHS certificates.
Q5: Do you support OEM/ODM service?
Yes, we do have professional R&D team to offer OEM/ODM service.
If you have other needs, please contact us to provide you with the best solution.
