80W High Power 405nm UV parallel light source for STEK 3D LCD 5.5/6/8.9 inch 3D printer Photosensitive resin curing LED X-CUBE
80W Features and Benefits:
1. Stable output, high uniformity.
2. Multiple control modes : Constant current, pedal control, intelligent optical and manual modes
damage problem in optical communication and LCD production.
3: Photoelectric induction, instant on/off, no preheating required.
4. Instantly lit up, achieving 100 power ultraviolet output without preheating.
5. The service life is not affected by the number of opening and closing times.

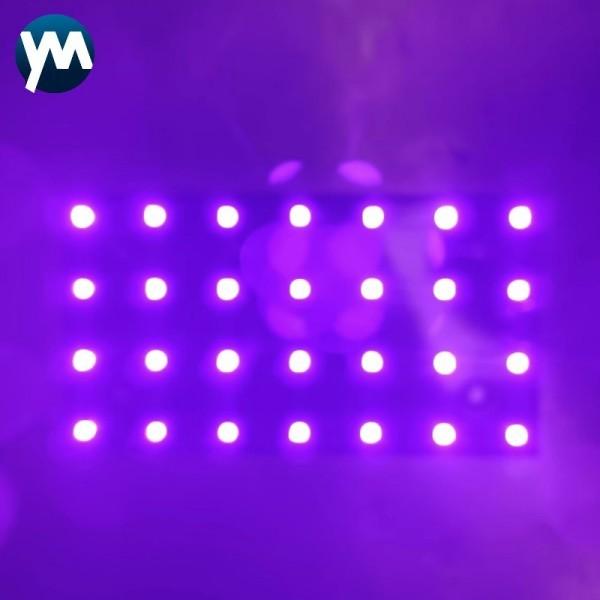

80W UV Led Module Product Description
| Product Name | YM-K28-12971 UV LED Module |
| Power | 80W |
| Color | UV |
| Number of lamp beads | 28 pcs |
| Diode type | 3535 smd |
| Lens Material of Diode | Quartz |
| View Angle of the Lens | 60 degree |
| Module size | 129mm*71mm*2.0mm |
| Luminous size | 125mm*66mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 24-27V |
| Current | 2-2.8A |
| Chip Material | Seoul,LG,Epileds |
| Encapsulation process | High temperature quartz lens package module lamp |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 15000 |
| Warranty | 1 year |
| Application | Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens. |
| Place of Origin | Shenzhen, Guangdong, China |
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.
Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,
furniture industry, etc.
It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers
includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
FAQ
Q1. Are you a factory?
A:Yes! We are factory in Shenzhen. We have been producing UV LED products for six years.
Q2. What's the wavelength of the UV LED lamp?
A: The wavelength of UV LED lamp usually are 365-405nm.The wavelength for inkjet printer is 395nm, 385/395nm for printing machine, 365nm for UV glue.
Q3. What's your LED chip?
A: We use are Korea LG, Seoul, Taiwna Epileds about the LED chip brand
Q4. What's the materials of the lamp and lens?
A: The materials of lamp is Aluminum,and the lens are quartz.
Q5.What's the cooling way?
A: Most of UVLED are water cooling. We also have several hot selling air cooling UVLED, more air cooling UV LED are on the way.
If you have other needs, please contact us to provide you with the best solution.
Umi@ymleduv.com , Thank you for your attention.
