210W 3535 405nm for 395nm UV Led Module 3D Printer Uv Printing Machine UV Lamp for Printer Led Module
120W Features and Benefits:
1. It has three major adaptation advantages: firstly, the wavelength can be customized and adapted to various curing scenarios;
2. The second is instant start stop, without the need for preheating and cooling, which can be flexibly matched with intermittent or continuous production;
3. The third is low-temperature curing (surface temperature is usually below 60 ℃), which avoids damage to heat sensitive substrates (such as plastics, films, electronic components) and greatly expands the application range.

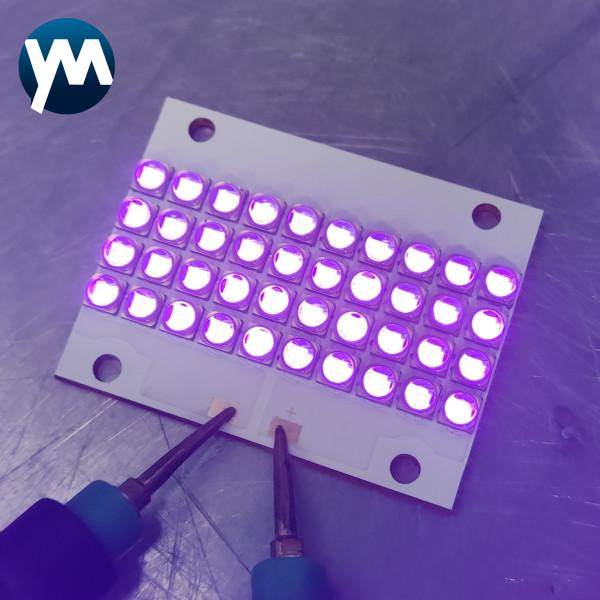

120W UV Led Module Product Description
| Product Name | YM-K30-4031 UV LED Module |
| Power | 120W |
| Color | UV |
| Number of lamp beads | 40 pcs |
| Diode type | 3535 smd |
| Lens Material of Diode | Quartz |
| View Angle of the Lens | 60 degree |
| Module size | 40mm*31mm*2.0mm |
| Luminous size | 40mm*16mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 34-38V |
| Current | 2-2.8A |
| Chip Material | Seoul,LG,Epileds |
| Encapsulation process | High temperature quartz lens package module lamp |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 15000 |
| Warranty | 1 year |
| Application | Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens. |
| Place of Origin | Shenzhen, Guangdong, China |
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.
Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,
furniture industry, etc.
It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers
includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
FAQ
Q1. What’s the warranty?
A: All of products can warranty for one year, if any parts damaged in warranty, we can supply the parts for free,
but you need send back the UV LED lamp and power supply or water chiller, other parts no need send back.
Q2. Can we customize the product?
A:Yes! We can producing the products according to your requirements
Q3. What is your usual payment terms for orders?
A:Foreign trade platform payment. T/T, PAYPAL, WESTERN UNION, BANK TRANSFER VISA/MASTERCARD etc.
More payment terms could be provided.
Q4. How long does it take for my order to be shipped?
A:It usually takes 1-3 days, depending on the quantity. Most of the regular models are in stock and
will be shipped within 1-3 days, and customized products will be shipped within 7-15 working days.
Q5. Can I get a discount?
A:Yes, you can. I will give you want price if your quantity is more or you have a special situation .
Cooperation is first, price is second.
If you have other needs, please contact us to provide you with the best solution.
