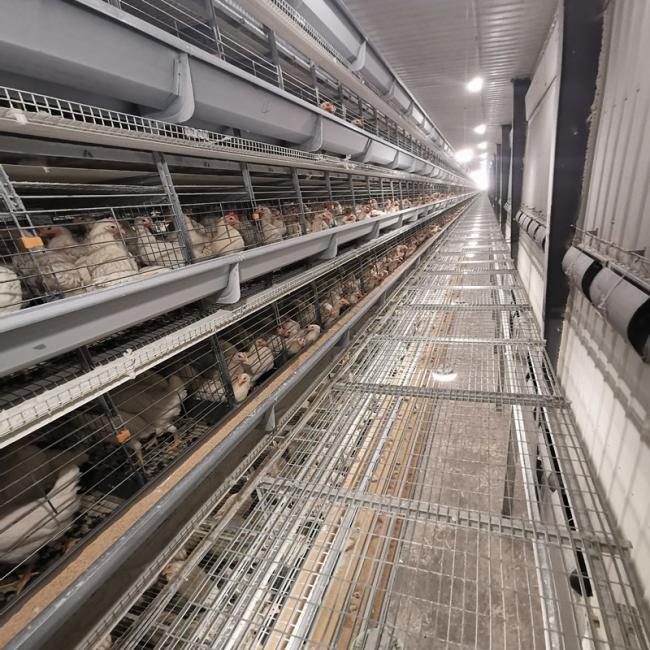

Layer Chicken Farming Poultry Equipment Manufacturers Battery Chicken Cages
Layer Chicken Farming Poultry Equipment Manufacturers Battery Chicken Cages
Product Description:
(1)Tiers:3,4,5,6,8 leves/floors
(2)Material:Q235 Hot-Dipped Galvanized,Zinc thickness: 275g/㎡
(3)Frame:Material of leg of frame is hot-dip galvanized steel with thickness: 2mm
(4)Feed trough:Material: hot-dip galvanized steel. Thickness: 1.0mm.
(5)Design:Fully Automatic Poultry Breeding Layer Egg Chicken Cage Equipment
(6)Fully Automatic System Including Egg Chicken Farm Layer Chicken Cages Body,Egg Layer Chicken Hens Battery Cage Frame,Feeders,automatic drinking system,on-rail hopper feeding system,manure removal stystem,egg collection system,Ventilation System etc
Professional after-sales team
1.We have 30 years of experience in professional design drawing team, and we are committed to product development and upgrading all year round. We can provide design drawings for free, and can design the scheme according to the requirements of different customers.
2. We have professional installation team with many years of foreign installation experience, After you ordered chicken poultry equipment, we can go to your country to provide guidance for installation until your equipment is in normal operation. We will visit our customers every year, which can better solve the problems encountered by customers in use.
| H Type Chicken Battery Cage | |||||||
| H Type Broiler Battery Cage | H Type Layer Battery Chicken Cage | ||||||
| Tier/ Floors | Cell Size/ cm | Cage Size/ cm | Birds Qty | Tier/ Floors | Cell Size/ cm | Cage Size/ cm | Birds Qty |
| 3 | 100x100x44 | 100x100x220 | 60 | 3 | 65x62.5x50 | 65x125x222 | 54 |
| 4 | 100x100x44 | 100x100x285 | 80 | 4 | 65x62.5x50 | 65x125x287 | 72 |
| 3 | 100x150x44 | 100x150x220 | 90 | 5 | 65x62.5x50 | 65x125x352 | 90 |
| 4 | 100x150x44 | 100x150x285 | 120 | 6 | 65x62.5x50 | 65x125x417 | 108 |
| 3 | 148x175x44 | 148x175x280 | 144 | 8 | 65x62.5x50 | 65x125x547 | 144 |
| 4 | 148x175x44 | 148x175x360 | 192 | 3 | 43x60x41 | 183x120x214 | 144 |
| 4 | 43x60x41 | 183x120x279 | 192 | ||||
| 5 | 43x60x41 | 183x120x344 | 240 | ||||
| 6 | 43x60x41 | 183x120x409 | 288 | ||||
| 8 | 43x60x41 | 183x120x539 | 384 | ||||
Layer Cage Parameter:
| Layer Cage Body |
1. Size: 65x62.5x50cm, 183x60x41mm; 2. Material: Hot dipped galvanized; 3. Feed trough:Zn-Al material. Thickness: 1.0mm. 4. Can be designed into 3, 4, 5, 6, 8, 9, 10 Tiers; 5. Capacity:54-384 birds/set |
| Automatic Hopper Feeding Machine Equipment |
1. Hopper:Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel 2. Traction Device :Power of motor:0.75kw,tow rope: pp rope with 14mm,speed:8.67m/minute. 3. Track of Trolley:Hot-dip galvanized steel with 48mm*2.75mm. 4. Head and end frame:Hot-dip galvanized steel with 40mm*60mm*3mm. 5. Silos |
| Automatic Drinking System |
1. Nipple Drinkers 2. Water Pipes 3. Water Pressure regulator 4. Filter 5. Medical pump
|
| Automatic Egg Collecting Machine |
1. Hot-dip galvanized 1.5mm side plate,speed 4m/min. 2. Egg guider:Hot-dip galvanized with thickness 1mm,configuration with stretching device. 3. Egg belt:100mm width 4. Crosswise egg conveyor |
| Automatic Poultry Manure Removal Machine |
1. Belt type manure cleaning machine:Hot-dip galvanized 2. Manure cleaning belt:Material is PP, Thickness is 1.2mm.Width is 1.2m/ 1.25m. 3. Bracket for manure cleaning belt:hot-dip galvanized steel, 1.5mm thickness. 4. Transverse manure conveying
|
| Environmental Controller | Fans, cooling pad, air inlets, intelligent controller |
