Hot Dip Galvanized H Type Broiler Battery Cage with Automatic Nipple Drinkers for 100-300 Chicks Capacity
Price:
100-120
MOQ:
10
Delivery Time:
20-40days
Brand:
sliver star
Product Description
H Type Fully Automatic Baby Chick Rearing Cage
Hot Dip Galvanized Steel Structure with 100-300 Chicks Capacity Per Set
Product Overview
Tailored for modern intensive commercial broiler farming, this high-efficiency H-Type automatic broiler battery cage system integrates full-process intelligent automation. It addresses key challenges in traditional floor rearing including low stocking density, high labor consumption, severe feed waste, and poor environmental hygiene.
Constructed with premium industrial-grade materials and modular vertical stacking design, this equipment significantly boosts breeding capacity, optimizes feeding conversion efficiency, reduces poultry mortality, and delivers stable long-term operation benefits with a service life of 15-20 years.
Equipped with fully matched automatic feeding, drinking, manure cleaning and ventilation systems, the multi-tier customizable structure adapts to various chicken house specifications, enabling standardized, streamlined and intelligent breeding management.
Core Specifications & Key Parameters
- Product Type: H-Type automatic integrated broiler & baby chick cage
- Main Material: National standard Q235 bridge steel wire
- Surface Treatment: Hot-dip galvanizing process (275g/m² zinc coating)
- Supporting Voltage: 380V industrial voltage
- Single Set Capacity: 100-300 birds
- Overall Dimension: 1000×1250×2900mm
- Supporting Systems: Automatic feeding, nipple drinking, manure cleaning, and ventilation systems
- Service Life: 15-20 years
Multi-Tier Model Specifications
| Model | Cell Size | Set Size | Birds per Set | Single Bird Area |
|---|---|---|---|---|
| 3-Tier Model | 150×100×47cm | 150×145×225cm | 102 | 428.57cm² |
| 4-Tier Model | 150×100×47cm | 150×145×290cm | 140 | 428.57cm² |
| 5-Tier Model | 150×100×47cm | 150×145×355cm | 170 | 428.57cm² |
Distinctive Product Features
Premium Anti-Corrosion & Bird-Friendly Structure
Built with high-purity Q235 carbon structural steel and reinforced welding process. Hot-dip galvanizing technology effectively resists corrosion from uric acid, ammonia and humid environments. Optimized bottom mesh with flexible elasticity and plastic coating prevents breast blisters and foot injuries.
High-Density Space-Saving Modular Design
Vertical multi-tier stacking structure maximizes chicken house vertical space utilization, increasing effective stocking density by 200%-300% compared to traditional flat ground breeding. Standardized modular assembly allows flexible layout adaptation.
Full-Process Automatic Intelligent Matching
Comprehensive intelligent breeding system with automatic feeding, constant-pressure drinking, cyclic manure cleaning and intelligent ventilation temperature control. All operations are automated, eliminating manual labor dependency.
Advantages Over Traditional Floor Breeding
- Higher Stocking Density: 30-40 birds per square meter vs. traditional 10-12 birds
- Optimized Feed Conversion Ratio: Centralized feeding avoids waste, reducing FCR
- Strict Disease Prevention: Isolated breeding prevents direct contact with manure
- Ultra-Low Labor Cost: One worker can manage over 30,000 poultry
Automatic Supporting Systems
Automatic Feeding System
Motorized trolley feeding and silo auger technology for quantitative, uniform feeding. Inward-curved anti-scratch feeding trough reduces feed waste by 8%-10%.

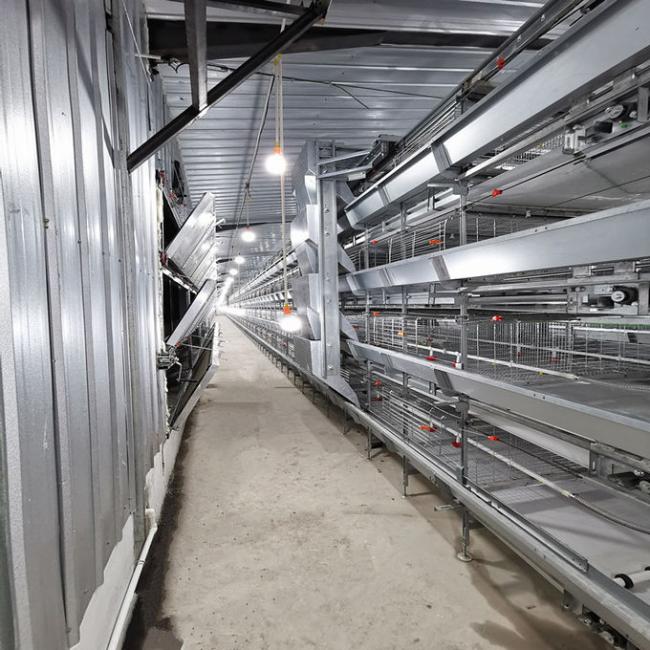

Automatic Manure Cleaning System
High-tensile acid-resistant PP manure belts with precision scraping blades. Real-time collection and outward transport keeps environment dry and clean.
Constant-Pressure Automatic Drinking System
High-sensitivity nipple drinkers with pressure stabilizing devices provide clean drinking water 24/7. Closed design prevents water pollution.
Customer Feedback & Case Verification
"After upgrading our 50,000-head broiler farm from floor rearing to this automated cage system, our stocking density tripled, the feed conversion ratio dropped from 1.65 to 1.48, and labor costs were greatly reduced. The hot-dip galvanized anti-corrosion quality is very reliable."
— Farm Director Mr. K. Hidayat, Indonesia
— Farm Director Mr. K. Hidayat, Indonesia
"The automatic feeding and manure cleaning systems operate stably with low failure rate. The ammonia odor in the chicken house is significantly reduced, and the poultry mortality rate is controlled below 2%."
— Commercial Breeder Mr. Tariq Al-Mansoor, Saudi Arabia
— Commercial Breeder Mr. Tariq Al-Mansoor, Saudi Arabia
After-Sales Service & Support
- Free customized 3D farm layout and CAD design
- Professional on-site installation guidance and commissioning
- Free operation and maintenance training
- 15-year warranty for cage frame structural corrosion
- Standard seaworthy packaging for safe transportation
Frequently Asked Questions
Q: What is the breeding capacity of a standard 12m × 120m chicken house?
A: Equipped with a 4-tier automatic cage system, a 12m×120m chicken house can raise 30,000-40,000 broilers, nearly 3 times the capacity of traditional floor breeding.
Q: Will the cage mesh cause damage to broilers' bodies?
A: Flexible galvanized wire mesh with high-density PVC coating provides moderate softness and elasticity, effectively preventing breast blisters, foot abrasions and leg deformities.
Q: How long is the conventional installation cycle?
A: For a standard 30,000-bird automated farm, complete installation, debugging and commissioning takes 20-25 days with professional guidance.
