12FO Fiber Pigtail Connector 0.9mm G652D G655 G657A Ceramic Ferrule SC APC
Price:
Negotiable
MOQ:
10 Sets
Delivery Time:
5 - 10 Business Days
Brand:
OEM
Product Description
SC APC 12 Fiber Pigtail 0.9mm G652D G655 G657A Ceramic Ferrule
Fiber Pigtail Feature
◆ 12 fiber bundle pigtail
◆ SC APC connectors
◆ Single Mode 0.9 mm cable
◆ Good plug and pull durability
◆ 3D Interference Test More than 85% Passed
Fiber Pigtail Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
1310 1550 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 60 |
|
3D Interference Test Passing Rate |
% | 85 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40~+85 |

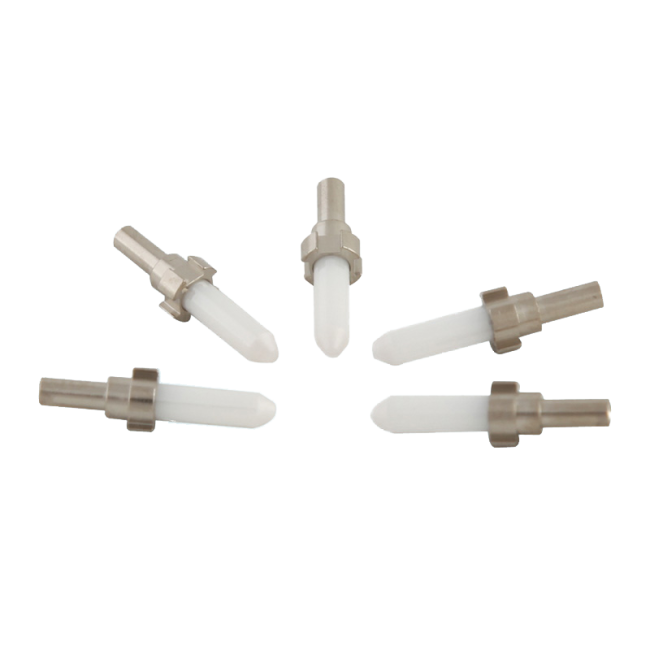

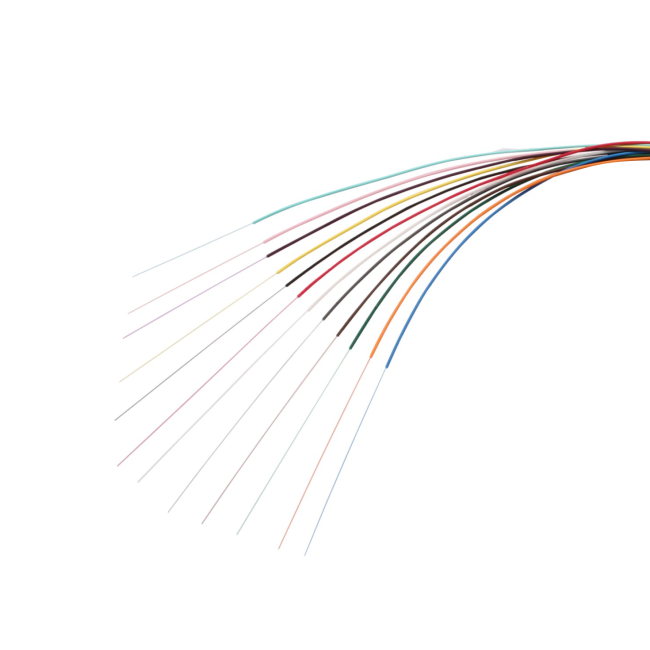

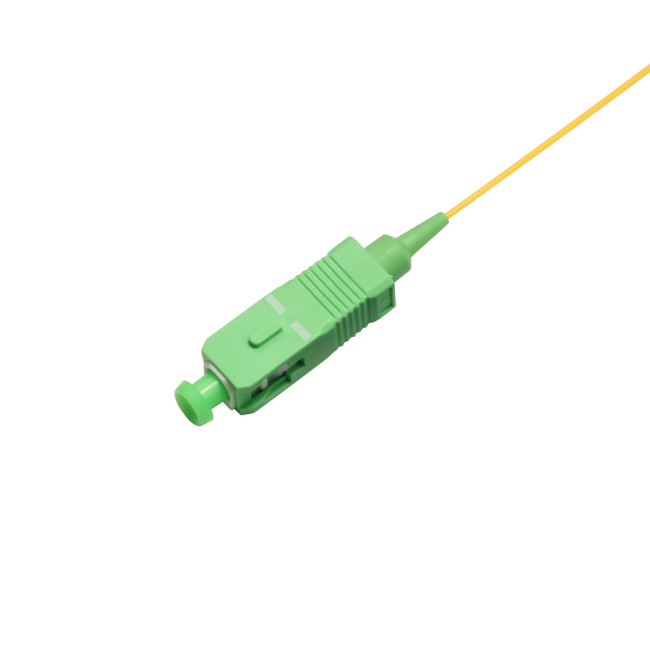

Fiber Pigtail's Image Detail
