LSZH Cable 125um Fiber Optic Jumper OM1 OM2 LC UPC To SC UPC
LC UPC to SC UPC Multi Mode OM1 OM2 Fiber Optic Jumper

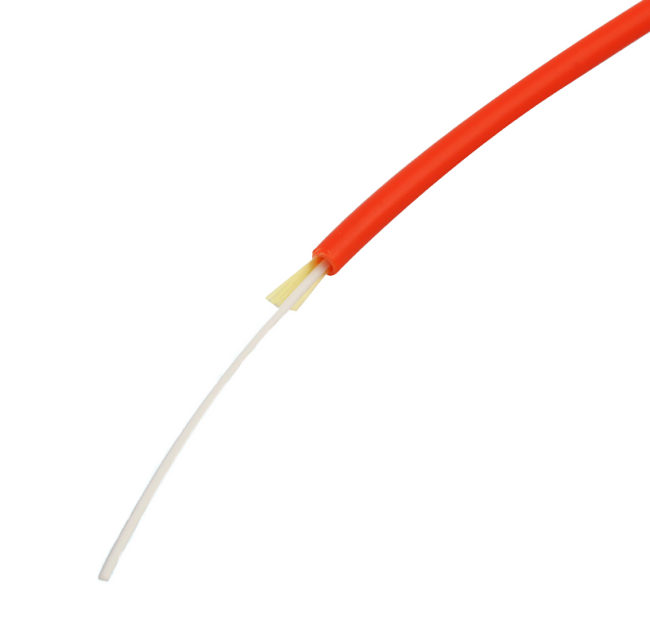

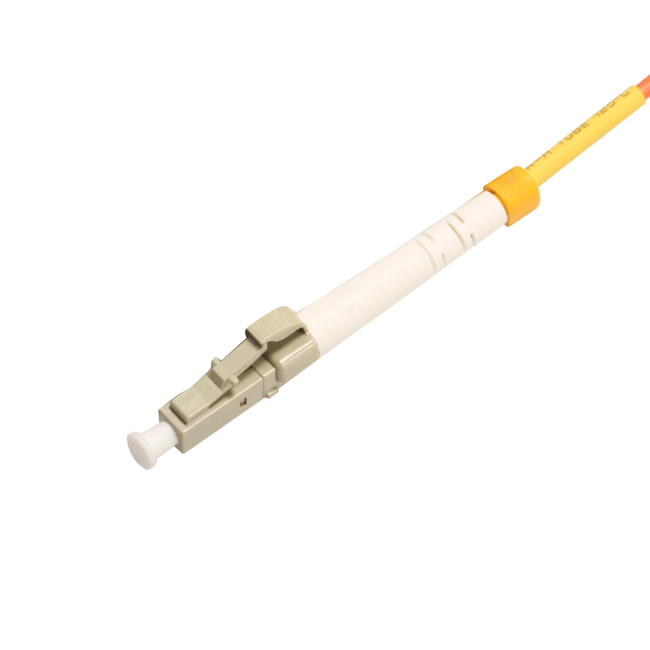

This LC to SC mixed type fiber optic jumper is a communication cables with two connectors on its end. Orange cable usually applied on OM1 and OM2 type multimode cable.
Product Feature
◆ Mixed type fiber optic jumper
◆ Easy for Installation
◆ Small Size High Dense
◆ Excellent Mechanical Endurance
◆ Good Repeatability
◆ 3D Interference Test More than 85% Passed
Product Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
850 1300 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 50 |
|
3D Interference Test Passing Rate |
% | 85 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40~+85 |
Product Detail
FAQ
Q1: Do you have real factory?
A1: Yes, HTD owns two factories in China. One mainly produces fiber optic jumper and pigtail. One mainly produces PLC splitter and coupler.
Q2: How can I get a quotation?
Q2: You can send us an inquiry on this page or directly email us (sales01@sz-htd.com).
Q3: How long will the goods be delivered after placing order?
A3: LC UPC to SC UPC simplex fiber optic jumper's normal delivery time is around 7 days.
Q4: Can you supply OEM products under our brand?
A4: Yes. As a large scale original manufacturer, HTD accepts OEM service. You just need to send us your detailed requirements.
Q5: Can I request a sample?
A5: Yes, HTD provides sample service for every product.
