60dB RL LC LC Single Mode Fiber Cord , PVC LSZH LC Duplex Patch Cord

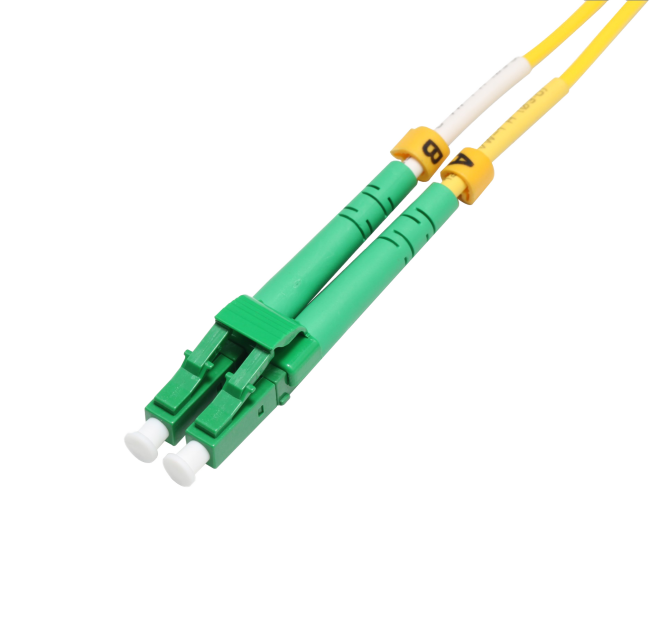

LC APC to LC APC Single Mode Duplex Fiber Optic Patch Cable PVC / LSZH

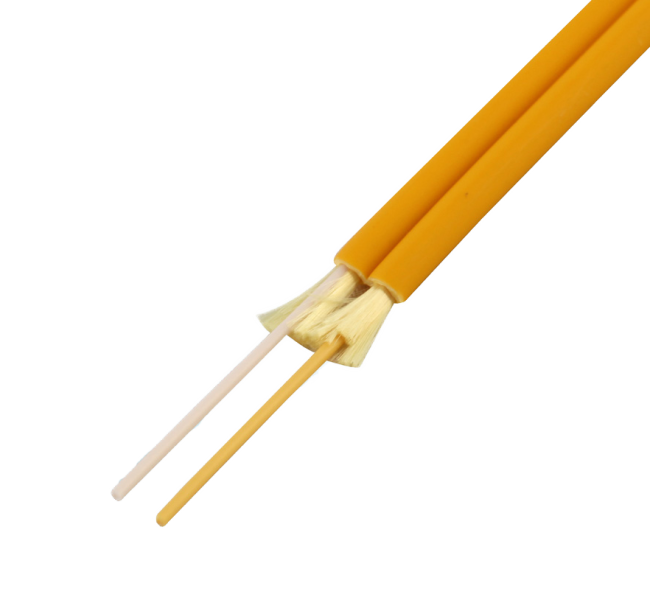

This fiber patch cord product is a piece of 2.0 mm or 3.0 mm single mode duplex fiber cable (length / cable color / fiber type / cable sheath material selectable) with two LC APC duplex connector. There are four connectors in total.
APC ferrule end face style connectors only apply to single mode fiber (G652D / G655 / G657A1/ G657A2) in most cases. Duplex patch cords only have 2.0 mm or 3.0 mm cable OD.
Product Feature
◆ Easy for Installation
◆ Low Insertion Loss and High Return Loss
◆ Excellent Mechanical Endurance
◆ Good Repeatability and interchaneability
◆ 3D Interference Test More than 85% Passed
Product Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
1310 1550 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 60 |
|
3D Interference Test Passing Rate |
% | 85 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40~+85 |
Product Detail
FAQ
Q1: How can I get a quotation? How long does it take?
A1: You can leave your email in contact us page or directly email us (sales01@sz-htd.com). We will provide you an exact quotation no longer than one business day.
Q2: How long will the goods be delivered after placing order?
A2: LC APC duplex patch cord normally has its delivery time around 10 to 15 days. Delivery time may be different due to factory's schedule and raw material in stock.
Q3: Can you supply OEM products under our brand?
A3: Yes. As a large scale original manufacturer, HTD accepts OEM service. You just need to send us your detailed requirements.
Q4: Can I request a sample? Is it free?
A4: Yes, HTD provides sample service for every product. If we have raw material of the product you want in stock, we can provide you free sample. Please check with us beforehand to see whether you can get a free sample.
