OD 3mm 3ft Fiber Optic Patch Cord SC UPC To LC UPC Single Mode Simplex 1550nm
SC UPC to LC UPC Single Mode Simplex Fiber Optic Patch Cable LSZH

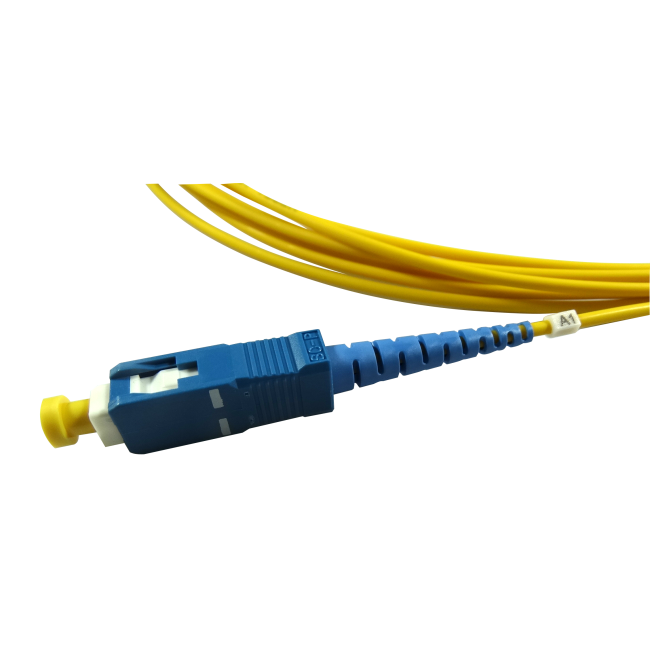

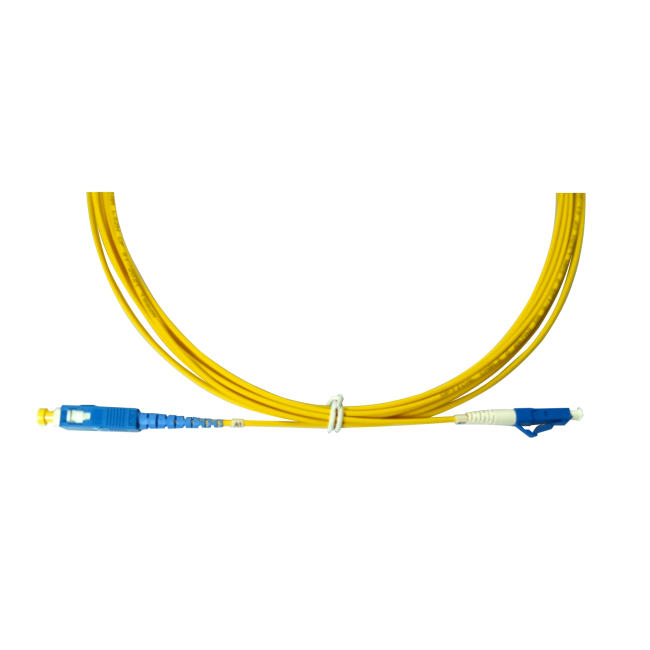

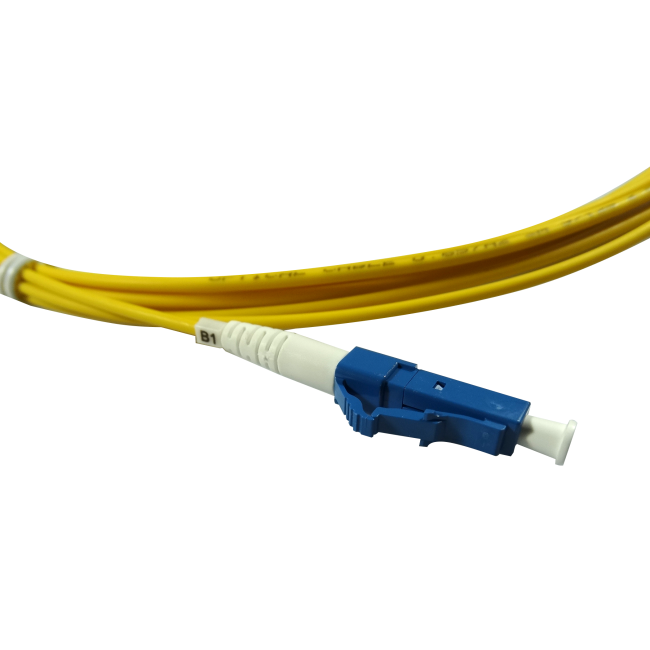

This patch cord product is a mixed type patch cable having a SC connector at one side and a LC connector at the other side.
Cable outer diameter and boot size could be chose: 0.9 mm / 2.0 mm / 3.0 mm. Non-standard cable OD, such as 1.6mm, could be customized.
Cable jacket color is yellow as standard single mode patch cable.
Fiber could be chose within single mode types: G652D / G655 / G657A1 / G657A2
Product Feature
◆ Easy Installation
◆ Mixed patch cable
◆ Excellent Mechanical Endurance
◆ Good in Repeatability and Interchangeability
◆ 3D Interference Test More than 90% Passed
Product Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
1310 1550 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 50 |
|
3D Interference Test Passing Rate |
% | 90 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40~+85 |
Application
- Telecommunication
- LAN & WAN
- Broadband
- CATV
- Network
- FTTX
