2mm OD 10m Fiber Optic Patch Cord SC UPC To LC UPC Single Mode Duplex 1310nm
SC UPC to LC UPC Single Mode Duplex Fiber Optic Patch Cable LSZH
LC/SC simplex and duplex connectors are used for equipment cross-connects or interconnects in backbone, horizontal and work area applications for high-speed data transmissions.
This patch cord product is a mixed type patch cable having a SC duplex connector at one side and a LC connector duplex at the other side. The uplex click is buckled to keep two connectors together.
Duplex cable outer diameter could be 2.0 mm or 3.0 mm. Fiber could be chose within single mode types: G652D / G655 / G657A1 / G657A2
Product Feature
◆ Easy Installation
◆ Mixed patch cable
◆ Duplex Connector
◆ Excellent Mechanical Endurance
◆ Good in Repeatability
◆ 3D Interference Test More than 90% Passed
Product Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
1310 1550 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 50 |
|
3D Interference Test Passing Rate |
% | 90 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40~+85 |

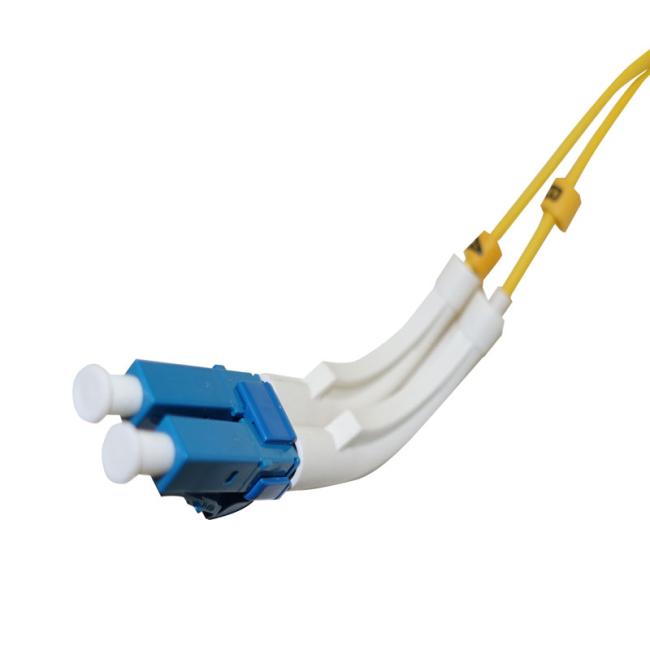

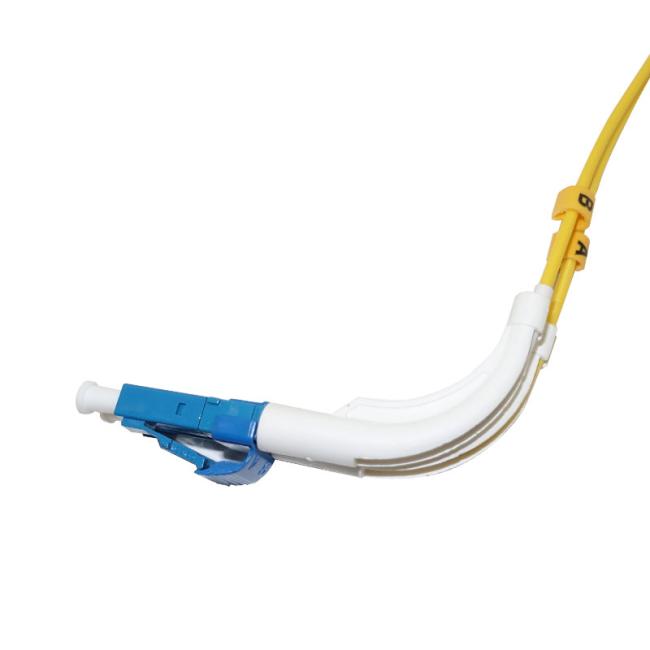

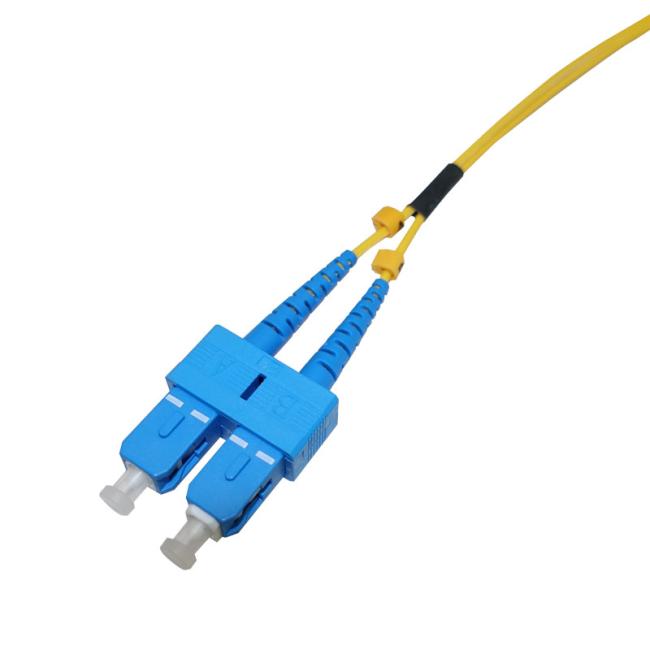

Product Detail
