SC APC Fiber Optic Jumper 2.0 3.0 G652D PVC LSZH With APC Connectors
SC APC Fiber Optic Jumper 2.0 3.0 G652D LSZH PVC Cable

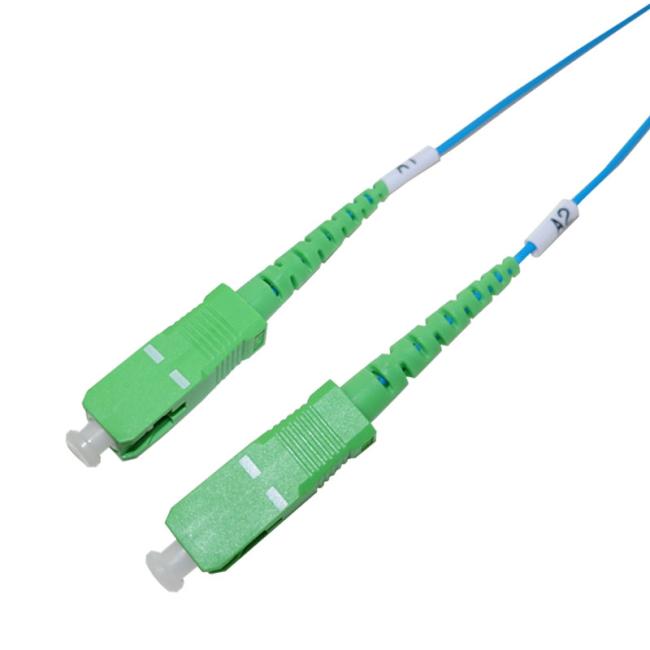

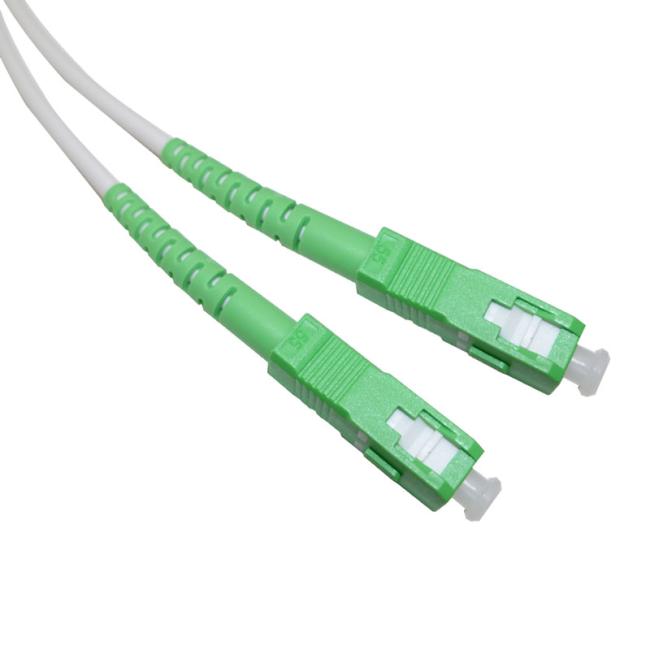

This SC APC fiber optic jumper is a telecommunication cable which has SC APC connectors installed at each ends.
APC connectors are in green parts.
Single Mode cable is usually in yellow jacket cable.
Product Feature
◆ Easy for Installation
◆ Small Size High Dense
◆ Excellent Mechanical Endurance
◆ Good Repeatability
◆ 3D Interference Test More than 85% Passed
Product Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
1310 1550 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 60 |
|
3D Interference Test Passing Rate |
% | 85 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40~+85 |
SC Connector Detail Image
APC Ferrule Image
FAQ
Q1: How can I get a quotation? How long does it take?
A1: You can leave your email in contact us page or directly email us (sales01@sz-htd.com). We will provide you an exact quotation no longer than one business day.
Q2: How long will the goods be delivered after placing order?
A2: SC APC simplex fiber optic jumper's normal delivery time is around 7 days. Depending on factory's schedule and your order quantity, delivery time will be different. Please check with us beforehand.
Q3: Can you supply OEM products under our brand?
A3: Yes. As a large scale original manufacturer, HTD accepts OEM service. You just need to send us your detailed requirements.
Q4: Can I request a sample? Is it free?
A4: Yes, HTD provides sample service for every product. If we have raw material of the product you want in stock, we can provide you free sample. Please check with us beforehand to see whether you can get a free sample.
