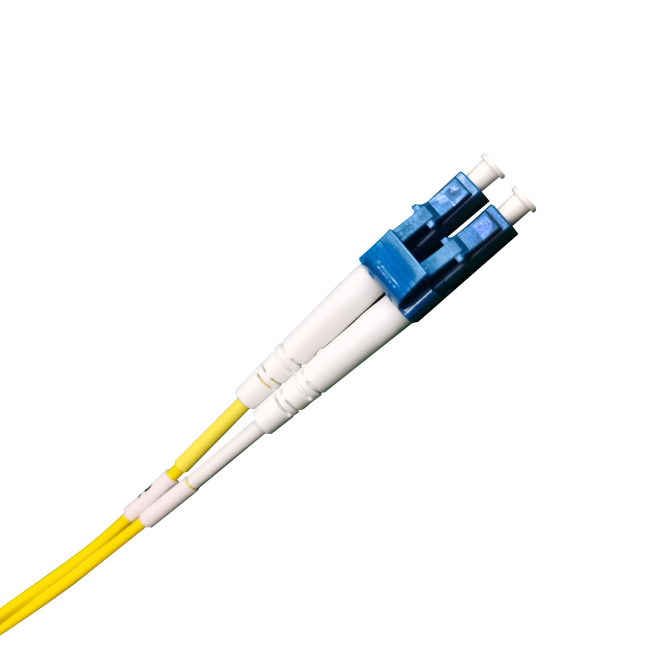

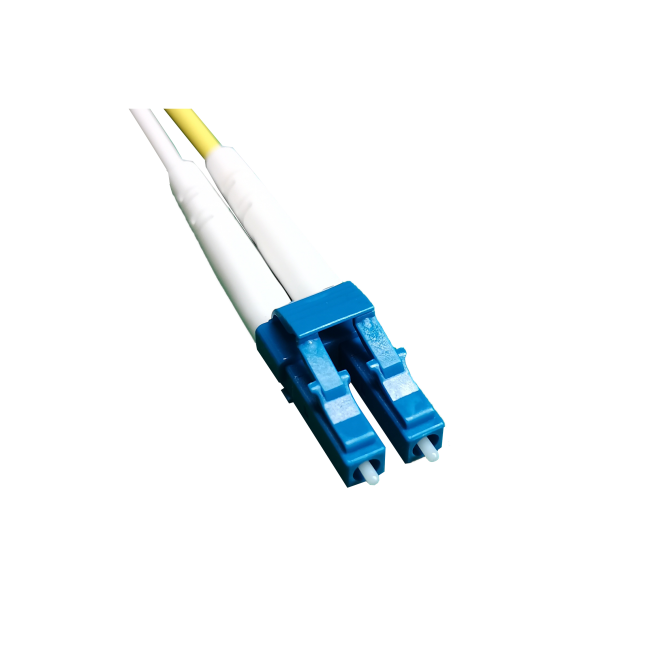

LC UPC Duplex Fiber Jumper LSZH 2.0 3.0mm Single Mode G657A1
LC UPC Single Mode Duplex Fiber Optic Jumper 2.0 3.0 mm

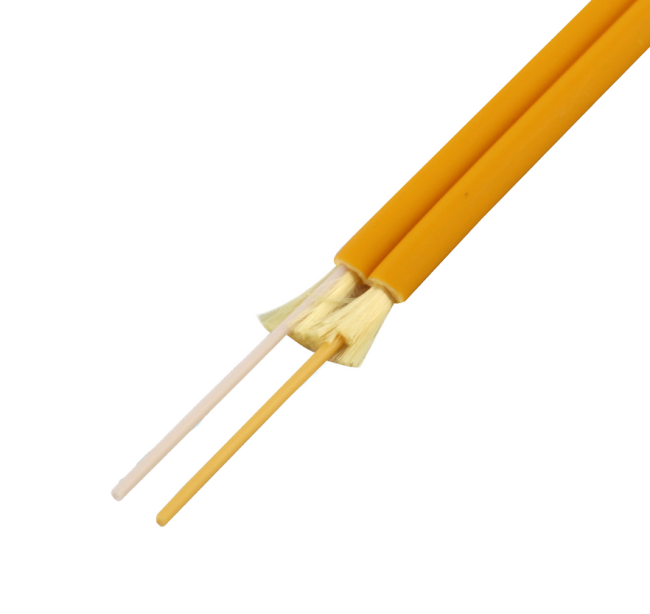

This fiber optic jumper product is a duplex type, which has two fiber cores in one piece of fiber cable. Each end of the cable has one LC UPC duplex connector. There are four connectors in total.
Fiber Optic Jumper's Feature
◆ Easy for Installation
◆ Small Size High Dense
◆ Excellent Mechanical Endurance
◆ Good Repeatability
◆ 3D Interference Test More than 90% Passed
Fiber Optic Jumper's Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
1310 1550 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 50 |
|
3D Interference Test Passing Rate |
% | 90 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40~+85 |
Product Detail
FAQ
Q1: Do you have real factory?
A1: Yes. We own two factories in China. One mainly produces fiber optic jumper / pigtail. One mainly produces PLC Splitter & Coupler.
Q2: How long will the goods be delivered after placing order?
A2: LC UPC Duplex fiber optic jumper's normal delivery time is around 15 days. Remember to check with us about the delivery time before placing your order.
Q3: Can you supply OEM products under our brand?
A3: Yes. As a large scale original manufacturer, HTD accepts OEM service. You just need to send us your detailed requirements.
Q4: Can I request a sample?
A4: Yes, HTD provides sample service for every product. If we have raw material of the product you want in stock, we can provide you free sample. Please check with us beforehand to see whether you can get a free sample.
