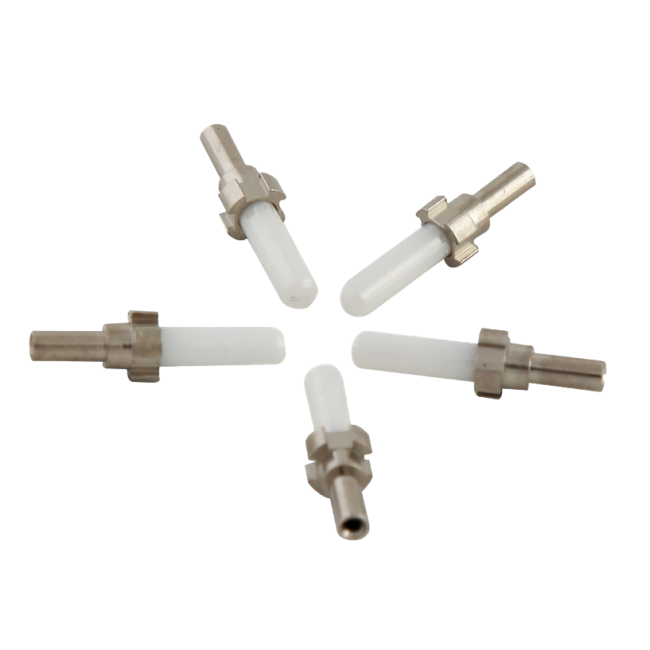

UPC Ferrule LC Patch Cord Single Mode Simplex PVC LSZH 1550nm
LC Patch Cord UPC Ferrule Polish Single Mode Simplex PVC LSZH Cable

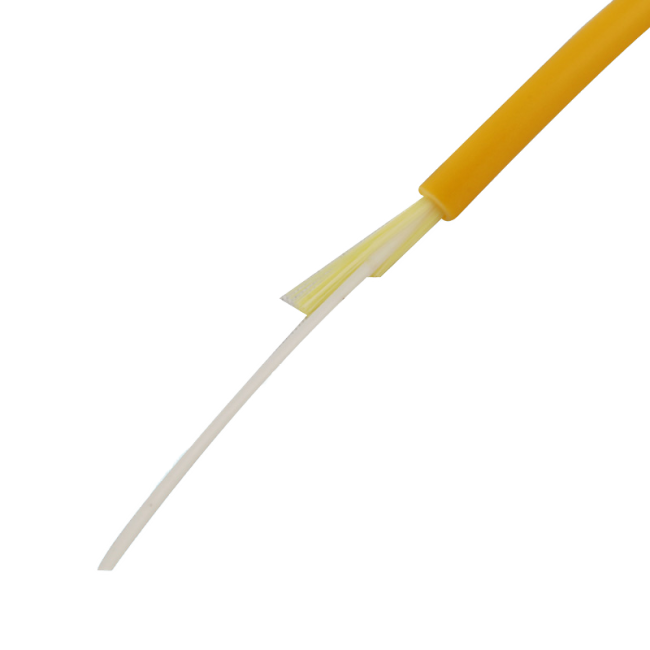

This lc patch cord is the most regular type in single mode simplex specification. Cable sheath could be PVC or LSZH. PVC sheath has lower price. LSZH sheath has better performance in flame-retardant. It is safer than PVC type cable.
Product Feature
◆ Easy Installation
◆ Excellent mechanical endurance
◆ Good in Repeatability
◆ Great Production to Fiber
◆ 3D Interference Test More than 85% Passed
Product Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
1310 1550 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 50 |
|
3D Interference Test Passing Rate |
% | 85 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40 ~ +85 |

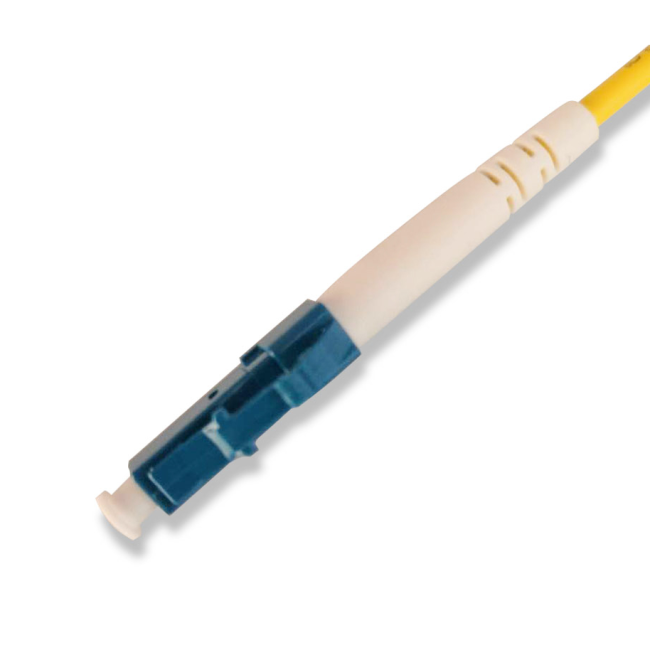

LC Patch Cord
FAQ
Q1: Do you have real factory?
A1: Yes, we have two factories in China. One mainly produces fiber optic patch cord / pigtail; one mainly produces PLC Splitter & Couplers.
Q2: How can I get a quotation? How long does it take?
A2: You can leave us an message or directly email us (sales01@sz-htd.com). We will send you an exact quotation within one business day.
Q3: How long will the goods be delivered after placing order?
A3: LC patch cord usually takes less than 1 week for delivery. If order's quantity is large, deliver time could be longer.
Q4: Can you supply OEM products under our brand?
A4: Yes. As a large scale original manufacturer, HTD accepts OEM service.
Q5: Can I try with sample first?
A5: Yes, we encourage our customers to try with sample first. If you come back to place your order, we will deduct the sample fee from your final order (so you're getting free sample).
