Dia 3mm 1550nm Fiber Optic Patch Cord G657A1 SC UPC Single Mode Simplex
Price:
Negotiable
MOQ:
100 Pieces
Delivery Time:
5 - 10 Business Days
Brand:
HTD / OEM
Product Description

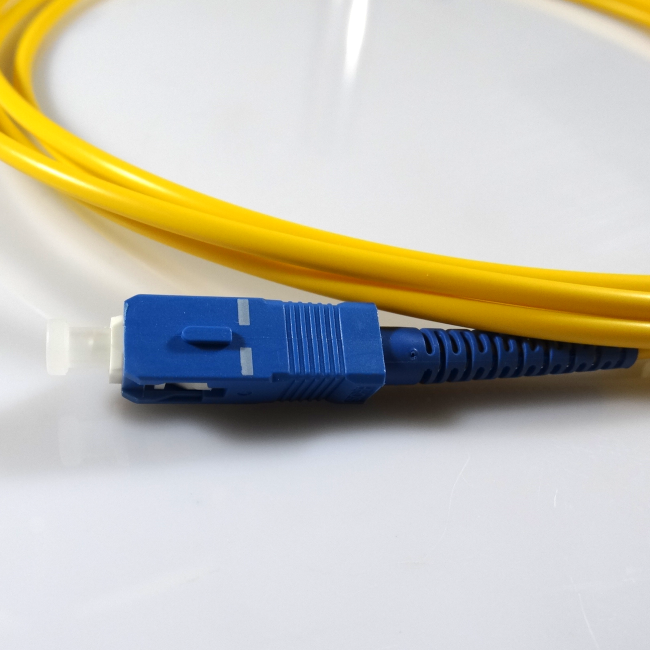

3.0 mm SC UPC Single Mode Simplex Fiber Optic Patch Cable LSZH
This product is one piece of 3.0 mm diameter fiber cable with one SC UPC connectors at each end. Cable's fiber can be any one type of single mode fibers. Single mode fibers include G652D, G655, G657A1, and G657A2.
Product Feature
◆ Easy Installation
◆ Mixed patch cable
◆ Excellent Mechanical Endurance
◆ Good in Repeatability
◆ 3D Interference Test More than 90% Passed
Product Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
1310 1550 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 50 |
|
3D Interference Test Passing Rate |
% | 90 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40~+85 |
Product Detail
