1310nm 60dB RL Fiber Optic Patch Cord SC APC To SC APC Single Mode Simplex
Price:
Negotiable
MOQ:
100 Pieces
Delivery Time:
5 - 10 Business Days
Brand:
HTD / OEM
Product Description
SC APC to SC APC Single Mode Simplex Fiber Optic Patch Cable LSZH

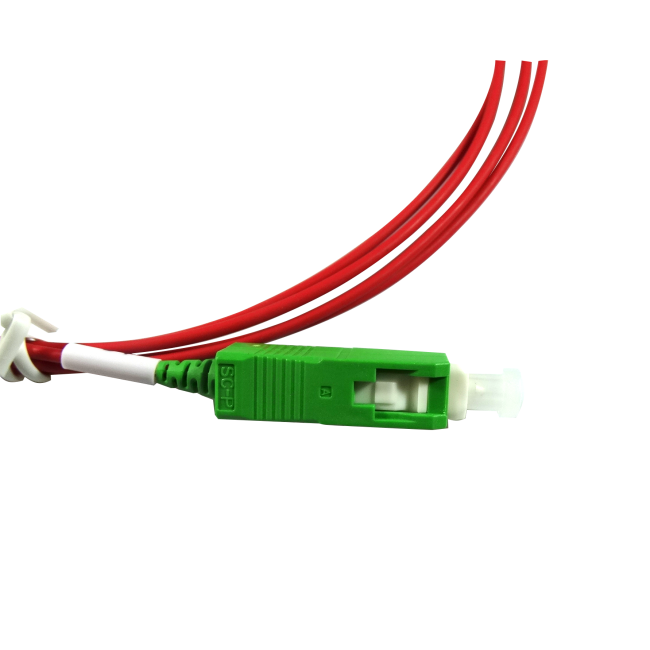

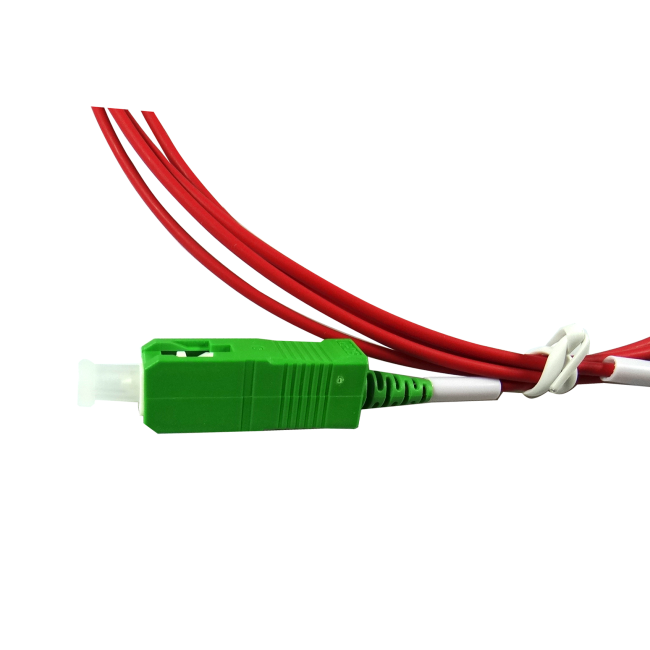

This patch cable product is one piece of 1.6 mm single mode simplex (red jacket) fiber cable with one SC APC connector at each end.

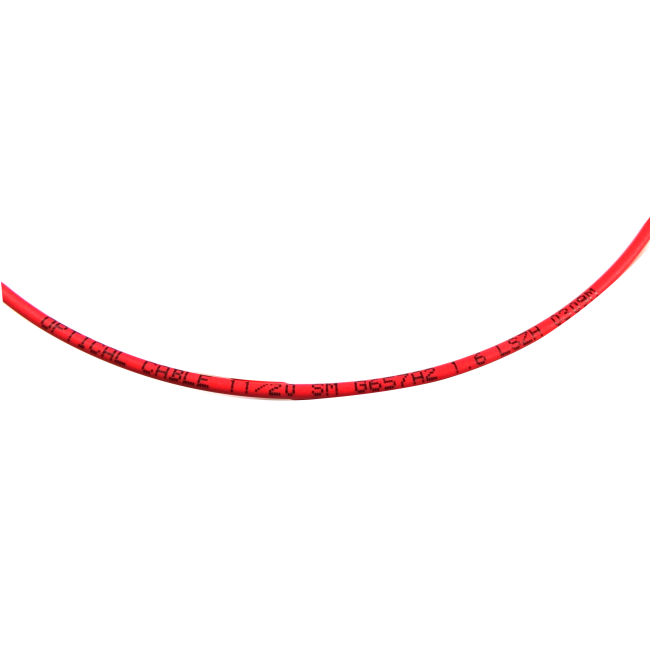

Cable outer diameter is 1.6 mm. If you have to change it to 2.0 / 3.0 / other size, you can inform us.
Cable's outer jacket is in red color. Please check with us the color you want before placing order.
Product Feature
◆ Quick install
◆ 1 fiber core
◆ Excellent mechanical endurance
◆ Good plug and pull durability
◆ 3D Interference Test More than 85% Passed
Product Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
1310 1550 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 60 |
|
3D Interference Test Passing Rate |
% | 85 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40~+85 |
Product Detail
