OM2 850nm Duplex Fiber Optic Patch Cord SC UPC To LC UPC Multimode
Price:
Negotiable
MOQ:
50 Pieces
Delivery Time:
5 - 10 Business Days
Brand:
HTD / OEM
Product Description
SC UPC to LC UPC MultiMode Duplex Fiber Optic Patch Cable LSZH

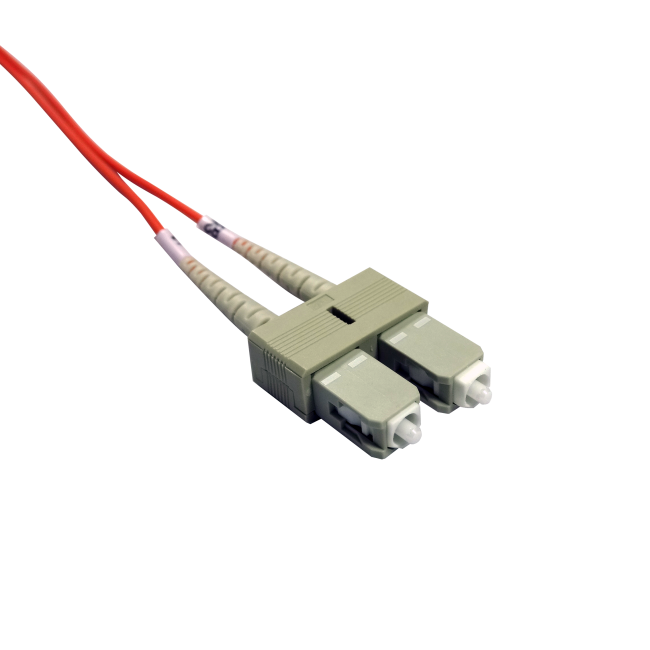

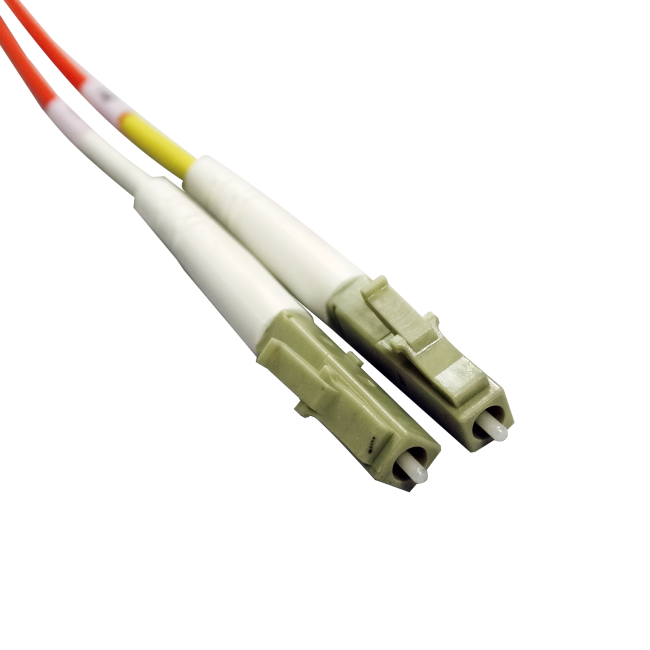

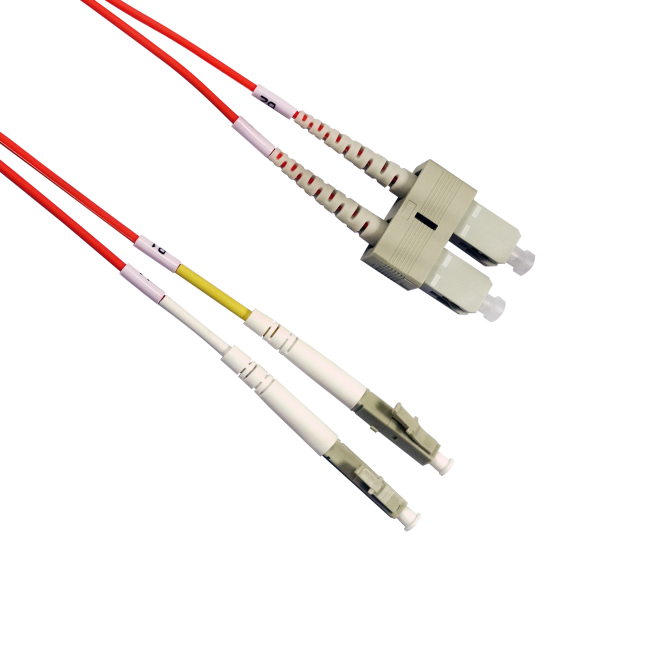

This conversion patch cord is having one piece of multi-mode duplex (orange jacket) cable with two SC UPC connectors at one end and two LC UPC connectors at another end. Duplex clip is provided with the duplex connectors.
Cable's jacket color could be changed. Duplex cable usually applies to 2.0mm and 3.0mm cable only.
Product Feature
◆ SC UPC and LC UPC conversion patch cable
◆ Duplex connector
◆ Multi mode cable
◆ Good plug and pull durability
◆ 3D Interference Test More than 90% Passed
Product Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
850 1300 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 50 |
|
3D Interference Test Passing Rate |
% | 90 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40~+85 |
Product Detail
