G657A1 LC UPC To LC UPC Single Mode Duplex Fiber Optic Patch Cord LSZH PVC Cable
G657A1 LC UPC To LC UPC Single Mode Duplex Fiber Optic Patch Cord LSZH PVC Cable
LC UPC duplex patch cord usually applies to 2.0mm and 3.0mm type outer diameter cable. There are four connectors in total (each side two connectors).
G657A type fiber has great performance in micro-bend resistance. LSZH cable jacket is flame-retardant, which is much safer than PVC type cable.
Product Feature
◆ 9 /125 um Fiber
◆ LSZH Cable Jacket
◆ Micro-bend Resistance
◆ Duplex Patch Cord
Product Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
1310 1550 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 50 |
|
3D Interference Test Passing Rate |
% | 90 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40 ~ +85 |

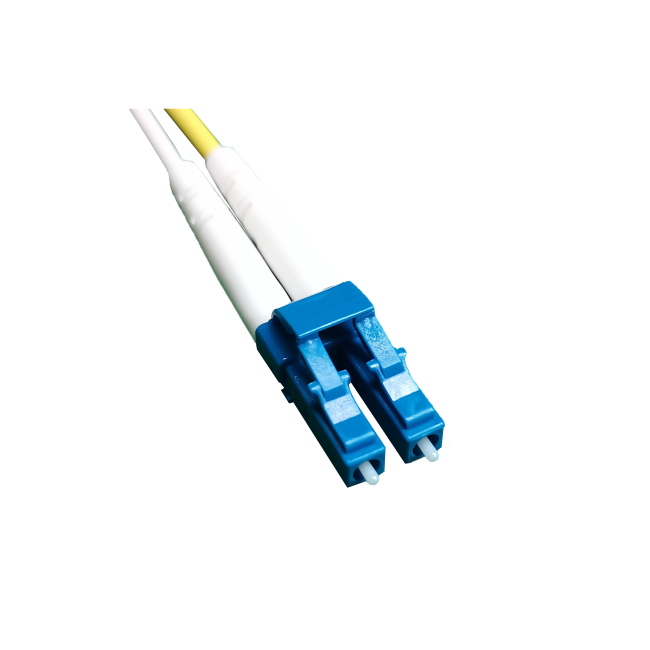

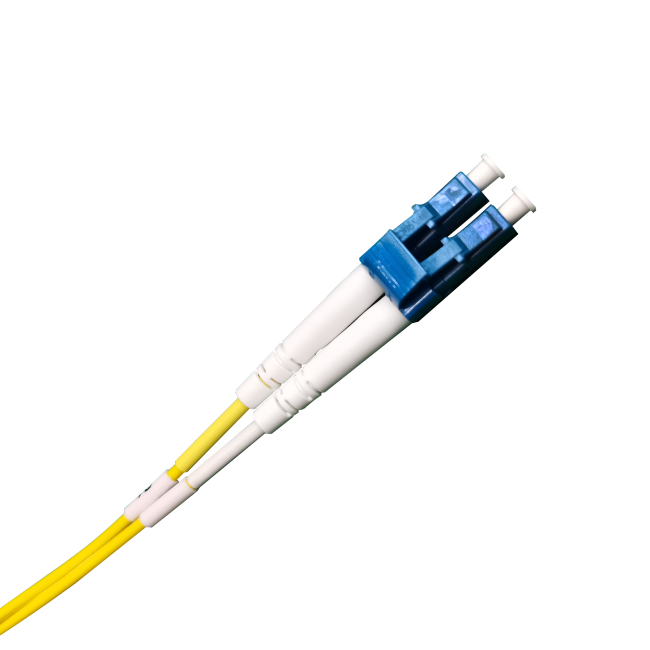

Product Detail

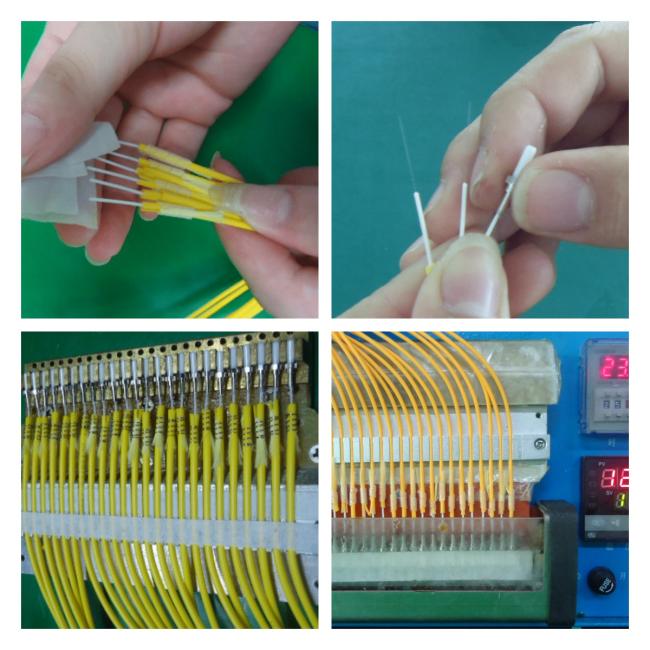

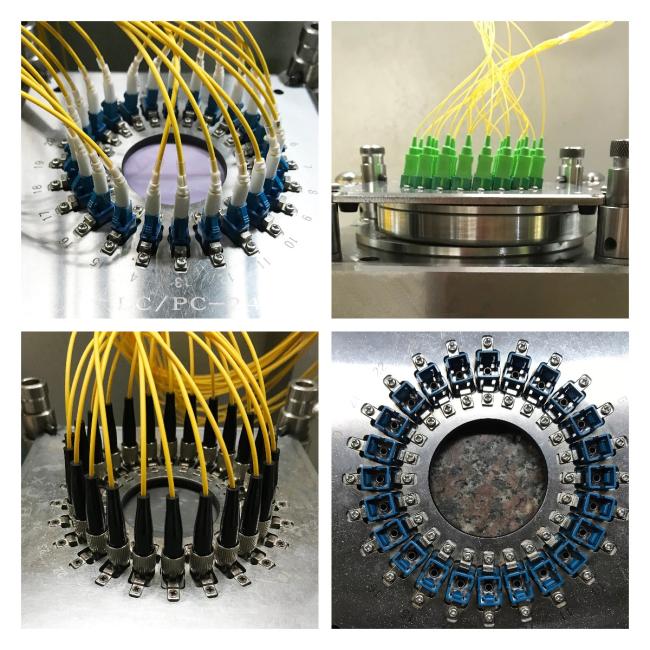

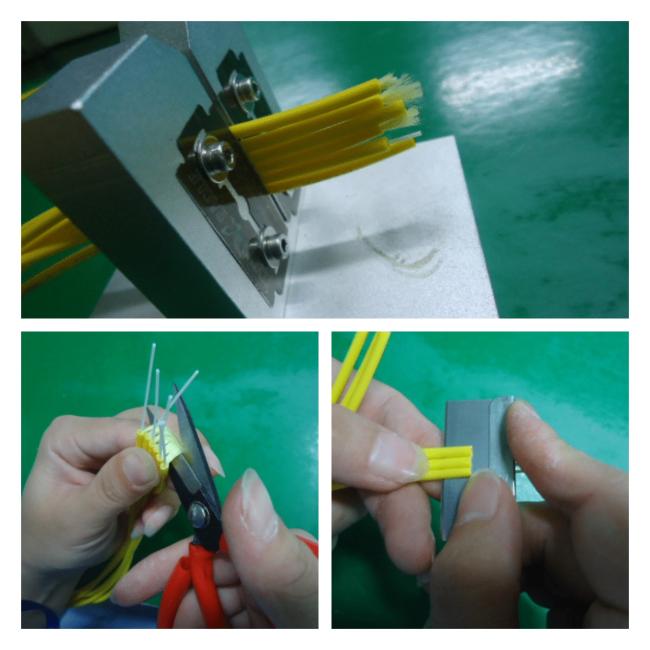

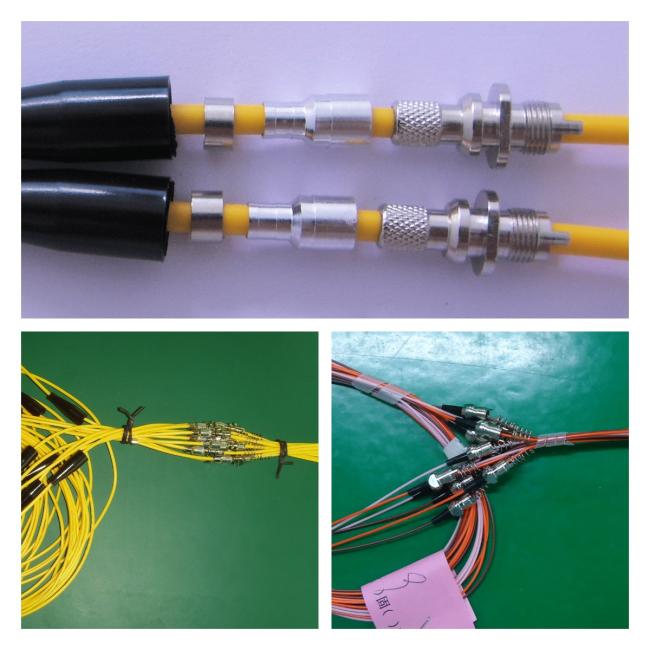

Production Flow (Partial)
FAQ
Q1: Do you have real factory?
A1: Yes, we have two factories in China. One mainly produces fiber optic patch cord / pigtail; one mainly produces PLC Splitter & Couplers.
Q2: How can I get a quotation? How long does it take?
A2: You can leave us an message or directly email us (sales01@sz-htd.com). We will send you an exact quotation within one business day.
Q3: How long will the goods be delivered after placing order?
A3: Depending on product and order’s quantity, delivery time would be different. LC UPC duplex patch cord's delivery time usually takes around 2 weeks depending on order's quantity.
Q4: Can you supply OEM products under our brand?
A4: Yes. As a large scale original manufacturer, HTD accepts OEM service.
Q5: Can I try with sample first?
A5: Yes, we encourage our customers to try with sample first. If you come back to place your order, we will deduct the sample fee from your final order (so you're getting free sample).
