1.6mm Fiber Optic Simplex Patch Cord SC APC To SC APC Single Mode
1.6mm SC/APC to SC/APC Single Mode Simplex Fiber Optic Patch Cord
Fiber Optic Patch Cord Feature
◆ SC connector
◆ APC end face
◆ Simplex connector (2 connectors total)
◆ Great mechanical endurance
◆ Small Size High Dense
1.6mm SC/APC to SC/APC Single Mode Simplex Fiber Optic Patch Cord is a product having one piece of single mode simplex cable with each side installed with a SC APC connector.
Fiber Optic Patch Cord Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
1310 1550 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 60 |
|
3D Interference Test Passing Rate |
% | 85 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40~+85 |

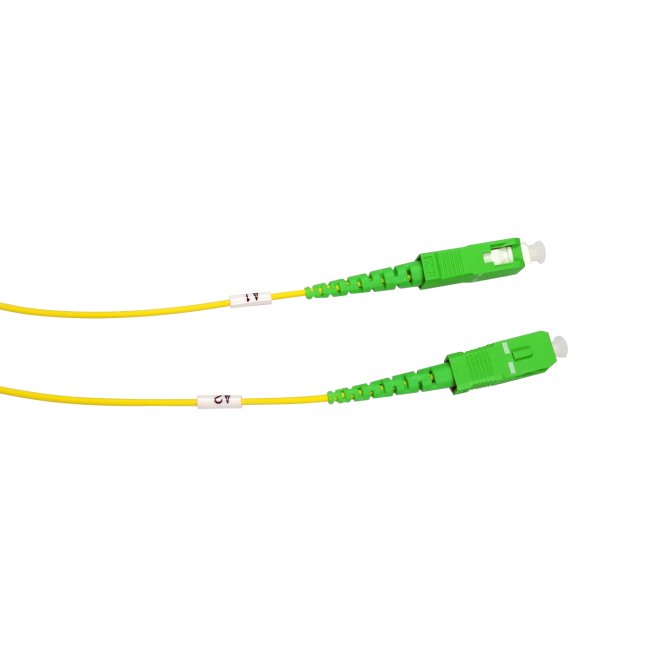

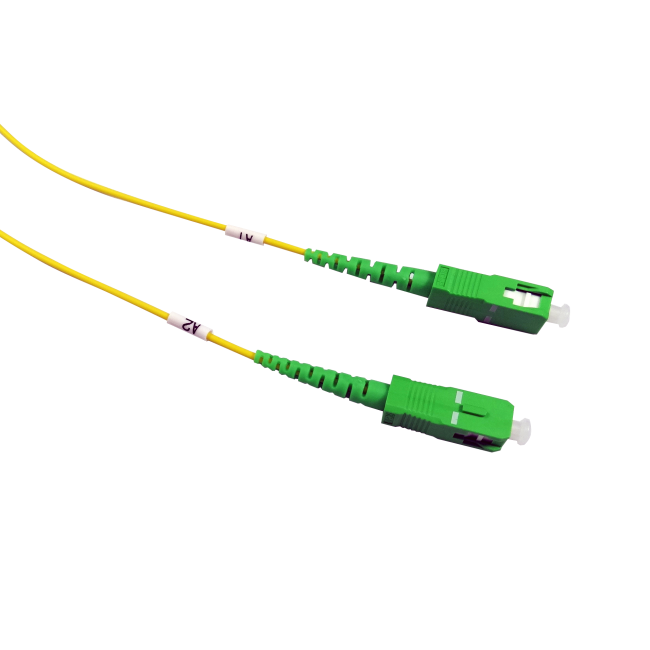

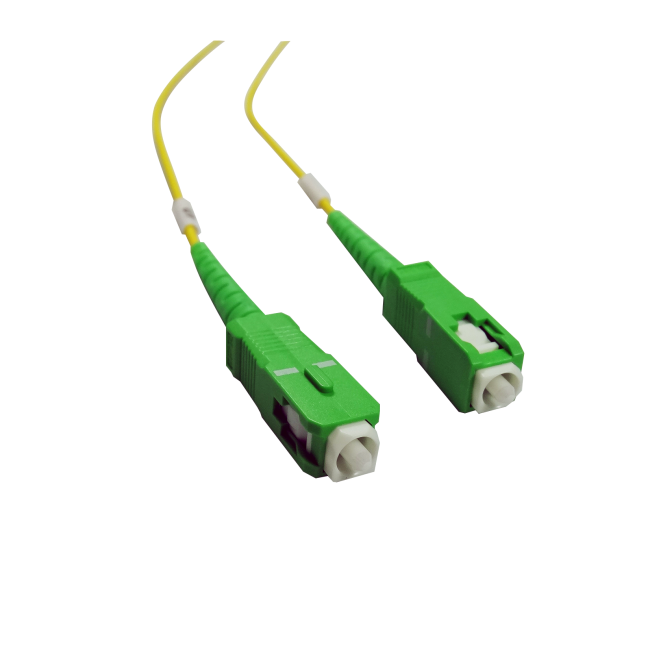

Fiber Optic Patch Cord Image Detail
FAQ
Q1: Do you have factory?
A1: Yes, HTD is a manufacturer. We own two factories in China. One produces fiber patch cord / pigtail. One produces PLC splitter / coupler.
Q2: How can I get a quotation?
A2: You send us an email inquity or email us (sales01@sz-htd.com). We will respond you within 1 business day.
Q3: How long will the goods be delivered?
A3: SC/APC to SC/APC single mode simplex patch cord takes 3 to 7 business days for delivery.
Q4: Can I request a sample?
A4: Yes, HTD provides sample service for every product.
