LC UPC Fiber Optic Patch Cord Multi Mode Duplex OM1 OM2 5 Meter Length
LC UPC Fiber Optic Patch Cord 20M Multi Mode Duplex OM1 OM2
Description of Fiber Optic Patch Cord
The 62.5/125μm OM1 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient.
OM2 LC LC fiber patch cable save more space for any places fiber patch cables are needed.
Specification of Fiber Optic Patch Cord
| Model | MM |
| Connector | LC |
| Fiber No. | 2 |
| Polish | UPC |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥50dB |
| Durability(500 Matings) | ≤0.2dB |
| Test Wavelength | 850nm - 1300nm |
| 3D Interference Test | 90% Pass |
| Ferrule Quality | Class A (zirconia ceramic) |
Feature of Fiber Optic Patch Cord
- Low insertion loss
- High return loss
- High-quality wireless connectivity
- Small Minimum Bend Radius
- Easy To Install
Application
1. LAN, WAN and Metro Networks
2. FTTH project & FTTX Deployments
3. CATV System

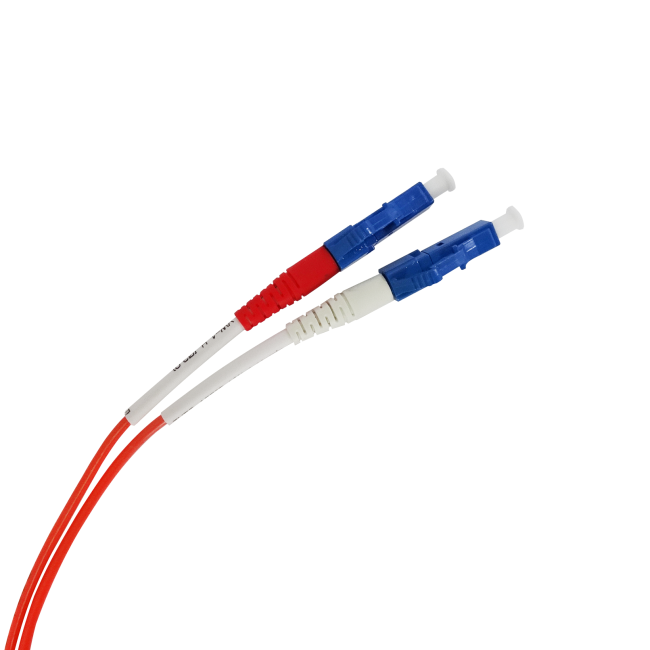

Fiber Optic Patch Cord Image
Reason Why Choose us
HTD has been manufacturing fiber optic patch cords for more than 14 years. OM1 LC to LC Multimode Fiber Patch Cable is constructed with LSZH Jacket, which is flame-retardant and environment friendly.
This product enables smaller enclosures and provides a smooth and stable transmission for network.
FAQ
1. What is your main product?
Our factory mainly produce Fiber Optic Patch Cord / Pigtail, Fiber Optic Fast Connector, and Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. How long can I get my product after placing order?
OM1 LC UPC duplex fiber optic patch cord usually takes 5 to 7 business days for delivery. It depends on order quantity.
3. Do you have certificate for raw material?
Yes, we build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers.
