3 Port Fullband 250 Bare Fiber CWDM Device Multimode 0.7dB
Price:
Negotiable
MOQ:
10PCS
Delivery Time:
Negotiable
Brand:
Wuhan ETERN Optoelectronics
Product Description
3 Port Fullband,CWDM,250 bare fiber,G657.A2,Ø3.8±0.1mm×L25-32mm
3 Port Fullband 250 Bare Fiber CWDM Device Multimode 0.7dB
Specifications
| Pass Band Wavelength range | nm | CW±7.5 |
| Reflect port Wavelength range | nm | 1260～CW-12.5&CW+12.5～1635 |
| Insertion Loss - Pass Band | dB | ≤0.7 |
| Ripple | dB | ≤ 0.35 |
| Insertion Loss - Reflect port | dB | ≤0.4 |
| Passband Channel Isolation | dB | ≥ 30 |
| Passband Non_Adjacent Channel Isolation | dB | ≥ 50 |
| Reflect Band Channel Isolation | ≥ 15 | |
| Polarization dependent loss | dB | ≤0.1 |
| Polarization Mode Loss | PS | ≤0.1 |
| Wavelength Thermal Stability | dB/°C | ≤0.002 |
| Thermal Stability | nm/°C | ≤ 0.005 |
| Return Loss | dB | ≥ 50 |
| Directivity | dB | ≥ 50 |
| Pigtail Length | dB | 1.5+/-0.1 |
| Pigtail Color | - | Com Port: Black, Other Ports: Clear |
| Pigtail Type | - | ITU-T G.657.A2 |
| Maximum Power Handling | mW | 500 |
| MAX Package Dimension | mm | Ф3.2 x 32 (250um fiber) |
Note:1. Insertion loss doesn’t include connector loss
Absolute Maxim um Rating
| PARAMETER | SPECIFICATION | UNITS | NOTE |
| Operation Temperature | -40~+85 | °C | |
| Operation Humidity | 5 to 90%RH Not condensed | %RH | |
| Storage Temperature | -40~+85 | °C | |
| Storage Humidity | 0 to 95%RH Not condensed | %RH |

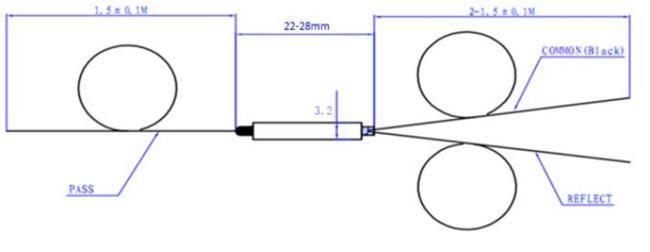

Package Dimension
