AAWG 100GHz Spacing Flat Top 48ch C14-C61 MUX DEMUX
Price:
Negotiable
MOQ:
2PCS
Delivery Time:
Negotiable
Brand:
Wuhan ETERN Optoelectronics
Product Description
AAWG, 100GHz Spacing, Flat-Top, 48ch, C14-C61 MUX&DEMUX
Description
ETERN Arrayed Waveguide Grating (AWG) is a cost-effective, high-performance DWDM Mux/Demux device operating on 100GHz channel spacing in the C and L band ITU grid, without any electrical power needed.Etern AAWG offers low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. The products are Telcordia GR-1221-CORE and GR-1209-CORE qualified, and RoHS complaint.
Optical Specification
| Parameters | Unit | Value | |
| Channel Number | 48 | ||
| Channel Spacing | GHz | 100 | |
| Center Wavelength | nm | 1528.773 ~ 1566.314 | |
| Channel Frequency | THz | 191.4 ~196.1 | |
| Reference Passband | nm | ±0.1 | |
| Insertion Loss | dB | ≤5.6 | |
| Insertion Loss Uniformity | dB | ≤1.5 | |
| Passband Ripple | dB | ≤0.5 | |
| Bandwidth | @3dB | GHz | 67 |
| Isolation | Adjacent Channels | dB | ≥25 |
| Non-adjacent Channels | ≥30 | ||
| Total crosstalk | dB | ≥21 | |
| PDL | dB | ≤0.5 | |
| PMD | ps | ≤0.5 | |
| Return Loss | dB | ≥40 | |
| Chromatic Dispersion | ps/nm | ±20 | |
| Operating Temperature | ℃ | -5 to +65 | |
| Storage Temperature | ℃ | -40 to +85 | |
| Directivity | dB | ≥40 | |
Pigtail and connector type/length
| Parameter | Specifications | Unit | |
| Fiber Type | SMF-28e With 900um Loose tube fiber | ||
| Fiber Length | Common Fiber | 500±50 | mm |
| Ribbon Fiber | 500±50 | mm | |
| Fan-out | 500±50 | mm | |
| Optical Adaptors (All port) | LC/UPC | ||

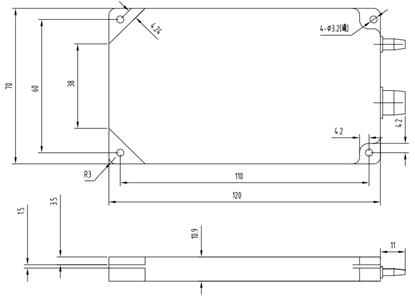

Mechanical Drawings (Unit: mm )
Fiber Length
Fan-out
