Megnetic Mount 42MP 5G Body Camera 4K GPS Tracking Face Recognition
Megnetic Mount 42MP 5G Body Camera 4K GPS Tracking Face Recognition
4K Resolution 5G Body Worn Camera GPS Tracking Megnetic Mount
Main feature:
Support 5G SA/NSA Sub-6 full network bands
Live streaming support 4K resolution
Specific Type-C USB3.0 connection
Three cameras for different applications
Hot-swappable 3200mAh lithium battery
H.265/H.264 video encoding
Built-in storage max support 256GB
Support two-way audio communication
Special PTT button for group talk
Built-in WIFI for data uploading
Built-in Bluetooth for earphone connection
Support built-in GPS for live tracking
Support GEO-fence alarm
Support 2.0 inch touch screen
Emergency alarm upload automatically
Support Video mark function
Datasheet of body camera:
| Model No. | BWC-R5 | |
| Main function | System | MTK platform, android system 10.0 |
| CPU | 2xA76+8xa55 2.0GHz, 7nm | |
| GPU | Manhttan 3.0:40fps(peak) | |
| Memory | 4G | |
| Lens& Sensor | 12M CMOS sensor, 130 degree wide-angle | |
| Screen | 2.0 inch color touch screen | |
| External port | Support Type-C USB3.0 | |
| Storage | Up to 256GB, standard is 64GB (Built-in Flash) | |
| Video | Resolution | 4K30FPS, 2K30FPS, 1080P30FPS, 720P30FPS, 480P30FPS |
| Compression | H.265/H.264, Video format is MP4 | |
| Video clip | Configurable options, such as 10,20,30 minutes | |
| Pre-recording | Up to 60 seconds | |
| Post-recording | 10s to 30mins configurable | |
| Snapshot | Picture | 42 Mega interpolation maximum |
| Picture format | JPEG | |
| Night Vision | Distance | Up to 10 Meters |
| IR switch | Auto or manual | |
| Flashing light | Support white light,blue and red flashing light | |
| Power | Battery | 3200mAh |
| Working hours | 1080P continues working 8 hours | |
| Charging time | About 4 Hours | |
| Structure | Weight | 187g |
| Dimension | 93*60*28 (mm) | |
| Drop resistance | 2 meters | |
| IP grade | IP67 | |
| Working Temp | -30 degree to +55 degree | |
| Others | 5G network |
5G:SA/NSA Sub-6(n1, n3, n41, n77, n78, n79) Compatible with: 4G-TDD(B34/38/39/40/41) 4G-FDD(B1/2/3/4/5/7/8/12/17/20 GSM 850/900/1800/1900 |
| Built-in WIFI | 802.11 a/b/g/n, support both 2.4G and 5G frequency | |
| Built-in GPS | GPS, A-PGS, For GPS live tracking | |
| Bluetooth | BT5.0, for wireless earphone | |
| Quality | Certification | CE, FCC |
Other features:
Geo-fence: It support to drag a special area in the center server, when the camera go out of the area, the camera will give the voice reminding alert.
FTP uploading: The camera can upload the recorded media files to the center server through WIFI or 5G automatically or manually, it supports resume transferring from the break point.
Voice report: When the camera startup or do any operation, when the storage is full, it can give the voice reminding notice, or beep sound.
Overwrite function: When the storage if full, it can overwrite the old video files, makes the storage data first in first out.
Pre-recording: When you press the recording button, the camera will save about 30 seconds video buffer, which help you to record the whole situation.
Video flag: During the video recording or playback, you can press the mark button to make a flag for the video; the video file name be marked with “IMP”, means it is important video files.

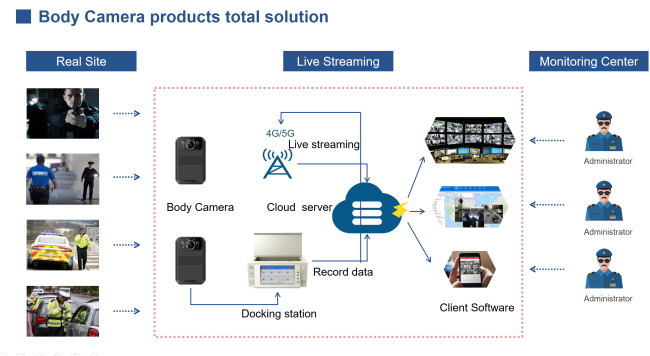

Total solution:
