2647lbs 1200KG Hydraulic Lifting Winch For Aerial Work Platform Boat Forklift Truck Trailer
» Brief Introduction
YT Series hydraulic lifting winch consists of hydraulic motor,planetary gear reducer,brake,drum,wire pressing machine,etcs.
» Main Application
Hydraulic winch is a vehicle tool used in automobiles and special vehicles for self-rescue and self-discharge in off-road driving under difficult road conditions.
It can also be used for lifting and pulling heavy objests in construction site,such as engineering installation,oil field drilling,road clearing etc.
It is characterized by compact structure,small size,light weight,large pulling force,simple installation,flexible operation,convenient maintenance,and the hydraulic system of the car itself.
» Performance
|
Line Pull(1sy layer) |
11.8KN/1200Kgs/2647Lbs |
|
Oil pressure |
25Mpa/250Bar |
|
Oil Flow |
130L/Min |
|
Line speed |
240.5m/min |
|
Drum capacity |
200m |
|
Layer No. |
22 |
|
Drum diameterxBottom diameterxLength(internal) |
450x170x600mm |
|
Wire rope diameter |
∅6mm |
|
Net weight |
260kg |

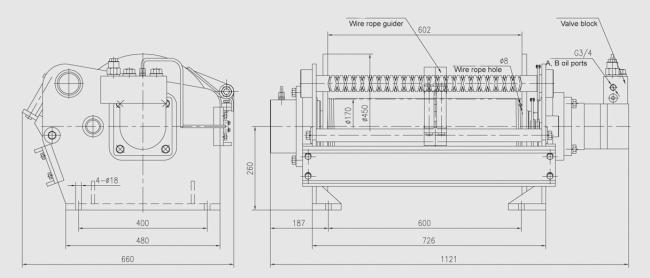

» Product structural drawing
» Features of Hydraulic Winch
1. Full-float typed planetary gear reducer makes the operation more stable, the structure more reasonable.
2. Adopt multidisc-typed friction normally-closed arrester makes the brake torque larger, safer and more reliable.
3. The product is featured by its small size, compact construction and high transmission efficiency.
4. Adopt the hydraulic motor of foreign famous brand,which has good performance and long life.
5. The installation bracket can be manufactured according to the customer's requirement.
6. According to the requirement of customers, manufacture the balance valve and shuffle valve.
» Company Profile
We are the manufacturer,we can save money from middleman.
» FAQ
Q: Are you trading company or manufacturer ?
A: We are factory, established in 1998.
Q: What is your terms of payment?
A: T/T 30% in advance, 70% see the B/L copy.
100% Irrevocable LC
Q: What is your terms of delivery?
A: FOB, CFR ,CIF, DDU or as your requirement
Q:Do you supply customized service?
A: Sure! We are manufacturer, and we have our own engineer group. They can work out customized design according to your special requirement.
Q: How about your delivery time?
A: Generally it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on your purchase quantity.
Q: How about package?
A: Wooden box conforming to export standards.
Q:What information should I provide to you before you could recommend a suitable winch and quote for me?
A: 1. Intended application of the winch (including working condition)
2. Line pull (KN / kgs / lbs)
3. Line speed (m/min)
4. Drum capacity/rope length (m)
5. Rope diameter(if have)
6. Oil pressure and oil flow (if have)
7. Other special requirements
Reach out to us for a complimentary consultation.
